Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya

Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya
Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya

Large Image :  Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya

Product Details:
Place of Origin: PeiGuan Metal Wire Mesh; Anping; China
Brand Name: PeiGuan
Certification: SGS
Model Number: HBB-J04
Payment & Shipping Terms:
Minimum Order Quantity: 60 Sets
Price: Negotiable
Packaging Details: pallet or in bulk
Delivery Time: According to the order
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 Set/Sets per Month
Detailed Product Description
Name: Hesco Bastion Barrier Material: Hot Dipped Galvanized Wire
Wire Diameter: 4mm; 5mm Cells: 5+4=9
Dimesion: 1.37m*1.06m*10m Surface Treatment: Galvanized
Mesh Panel: 75*75mm Or 3''*3'' Dimension: MIL1-MIL12
Geotextile: 300g/m2 Color: Beige, Military Green
High Light:

Kenya Hesco Bastion Wall

,

5mm Hesco Bastion Wall

,

Zinc Coated Defensive Barrier

Factory Supply Zinc Coated Military Hesco Steel Barrier Wall For Kenya



Description:



Military Hesco Steel Barrier Wall for Shooting Range Construction is one modern welded gabion basket which can be filled with sand, earth, gravel, aggregates, rubble, bricks, even some fine sediment, etc. And it is widely used for explosion-proof against attacks from rifle bullets, shell fragments, rocket propelled grenade round, especially used in Afghanistan, Syria, Iraq, Iran, Jordan, etc. It is also used for flood control in cities, so its another name is hesco flood control barrier.
In both military sand security applications the military barrier affords protection from small arms fire right up to VBIEDs and artillery. PeiGuan's military defensive barriers are mainly used for Homeland Security applications providing critical infrastructure protection including perimeter security, vehicle barriers and inspection lanes as well as temporary or permanent barriers.



Specification:



Diameter

4mm; 5mm

Color

Silver, green, Gray, Blue, Yellow

Material

Galvanized steel wire

Dimesion

1.37m * 1.06m * 10m

Mesh opening

75mm*75mm

Cells

5+4=9



 ITERM NO.

HEIGHT

WIDTH

LENGTH

CELLS NO.

PG MIL1

54''(1.37M)

42''(1.06M)

32'9''(10M)

5+4=9 cells

PG MIL2

24'' (0.61M)

24''(0.61M)

4'(1.22M)

2 cells

PG MIL3

39''(1.00M)

39''(1.00M)

32'.9''(10M)

5+5=10 cells

PG MIL4

39''(1.00M)

60''(1.52M)

32'.9''(10M)

5×2+5×2=20 cells

PG MIL5

24''(0.61M)

24''(0.61M)

10'(3.05M)

5 cells

PG MIL6

66''(1.68M)

24''(0.61M)

10'(3.05M)

5 cells

PG MIL7

87''(2.21M)

84''(2.13M)

91'(27.74M)

5+4+4=13 cells

PG MIL8

54''(1.37M)

48''(1.22M)

32'.9''(10M)

5+4=9 cells

PG MIL9

39''(1.00M)

30''(0.76M)

30'(9.14M)

6+6=12 cells

PGMIL10

87''(2.21M)

60''(1.52M)

100'(30.50M)

5+5+5+5=20 cells

PG MIL11

48''(1.22M)

12''(0.30M)

4'(1.22M)

2 cells

PG MIL12

84"(2.13M)

42"(1.06M)

108"(33M)

5+5+5+5+5+5=30 cells

PG MIL19

108''(2.74M)

42"(1.06M)

10'5'(3.18M)

6 cells



Installation



  • Unwrap the collapsible metal mesh container from its packaging.
  • Unfold the barrier and attach it to reach the designed length.

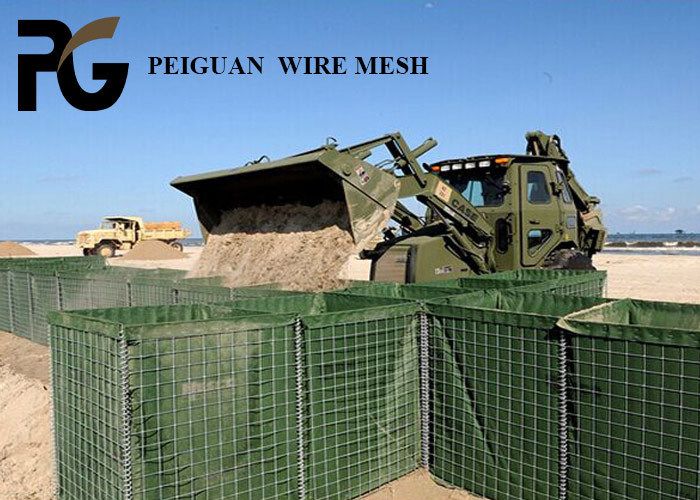

  • Fill the container with soil, sand or gravel. A common machine used is a front-end loader.
  • Compaction of the fill.
  • Additional layers can be added as required.



Packing terms:Usually wrapped with shrink film and packed in pallet.



Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya 0

Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya 1

Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya 2Zinc Coated Hesco Bastion Wall Explosion Proof For Kenya 3

About Us:



Anping PeiGuan Metal Wire Mesh Products Co., Ltd. is one leading manufacturer of hesco barrier ,located in Anping of China ,the famous Wire Mesh Hometown in China. Mainly produces Hesco Barrier Bastion, Gabion Mesh, Welded Wire Mesh, Chicken Wire Mesh, etc.
Our mission is quality first, reputation above all. All of the products should be tested before loading. Only the qualified products can be delivered to the customers.

We have specialized equipments and professional inspectors. We can supply the quality assurance to the customer.

Due to our hard working technicians and the continuously pursue of outstanding quality, we have exported our product to Northern America, Europe, South Africa, Latin America, the Middle East, the Oceania, and Asia, etc.
