| Product Name: | Bastion Barrier | Dimension: | MIL1-MIL12 |
|---|---|---|---|
| Hole Shape: | Square | Aperture: | 75x75mm |
| Wire Gauge: | 4mm, 5mm | Color: | Beige, Military Green |
| Application: | Fence Mesh | Surface Treatment: | Hot-dipped Galvanized, Galfan Coated |
| Processing Service: | Welding | Material: | Galvanized Iron Wire, Galfan Wire, Low Carbon Iron Wire |
| Highlight: | 1.3m Defensive Barriers,1.3m MIL1 Defensive Barriers,Green 1.3m Military Barriers |
||
1.3m Height MIL1 Gabion Box Professional Beige Bastion Barrier
Product Information

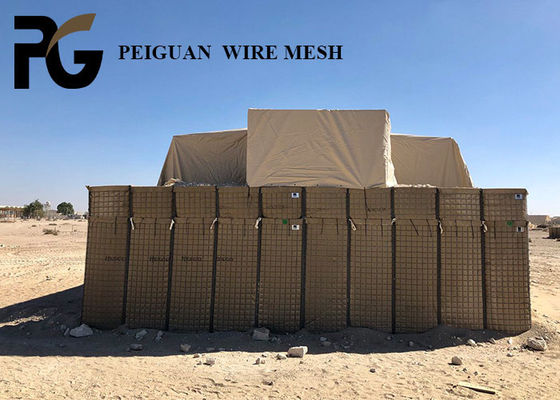

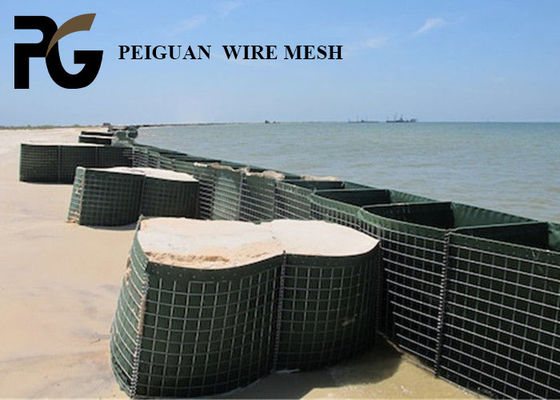

Bastion Barrier also called bastion ,is a modern gabion used for flood control and military fortification. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent dike or barrier against blast or small-arms. Barriers Blast Wall has been a key component in providing Force Protection since the 1991 Gulf War. It has been deployed with the U.S. Military, NATO, The United Nations and other military forces through out the world. Barriers Blast Wall is extensively used in the protection of personnel and key assets in military, peacekeeping, humanitarian and civilian operations.
Specifications
Geotextile: 300g/m2
Color: Silver, green, Gray, Blue, Yellow
Material: Galvanized steel wire
Mesh opening: 75*75mm or 3''*3''
Size: height 1.37m* width 1.06m* length 10m
| PRODUCT ITERM NO. | HEIGHT | WIDTH | LENGTH | CELLS NO. |
| PG MIL1 | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) | 5+4=9 cells |
| PG MIL2 | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) | 2 cells |
| PG MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) | 5+5=10 cells |
| PG MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) | 5×2+5×2=20 cells |
| PG MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
| PG MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
| PG MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) | 5+4+4=13 cells |
| PG MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) | 5+4=9 cells |
| PG MIL9 | 39''(1.00M) | 30''(0.76M) | 30'(9.14M) | 6+6=12 cells |
| PGMIL10 | 87''(2.21M) | 60''(1.52M) | 100'(30.50M) | 5+5+5+5=20 cells |
| PG MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) | 2 cells |
| PG MIL12 | 84"(2.13M) | 42"(1.06M) | 108"(33M) | 5+5+5+5+5+5=30 cells |
| PG MIL19 | 108''(2.74M) | 42"(1.06M) | 10'5'(3.18M) | 6 cells |
Applications
1. Security and defense wall around the perimeter
2. Equipped shelters
3. Ammunition storage
4. Bunkers for staff and supplies
5. Observation sites
6. Defensive shooting positions
7. Access control points
8. Security Stations
Installation

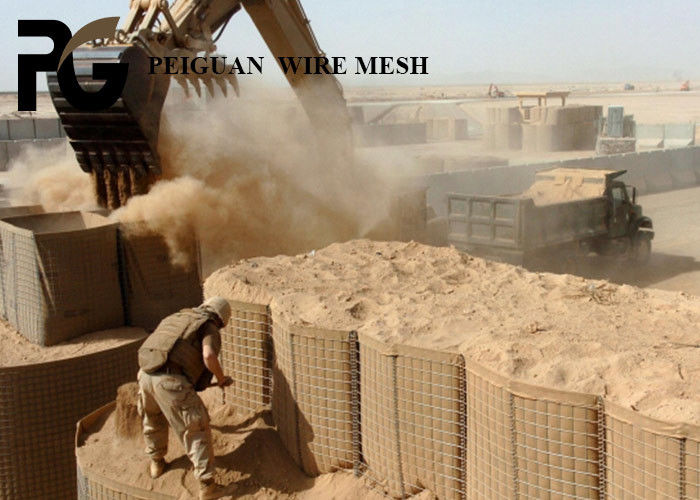

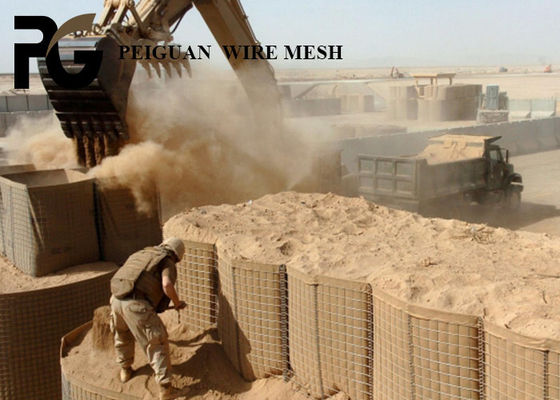

1. Unpack the collapsible wire mesh container from package.
2. Unfold the barrier and connect barriers to reach the designed length
3. Fill soil, sand or gravel into the container.
4. Compact the content
5. Add layers if required.
