Product Details:
Payment & Shipping Terms:
|
| Name: | Bastion Barrier | Wire Diameter: | 4mm; 5mm |
|---|---|---|---|
| Aperture:: | 75*75mm Or 3''*3'' | Surface Treatment:: | Hot-dipped Galvanized, Galfan Coated |
| Material:: | Galvanized Iron Wire | Processing Service:: | Welding |
| Type: | Welded Mesh | Dimension: | MIL1-MIL12 |
| Geotextile: | 300g/m2 | Packing: | In Bulk |
| Highlight: | 2.21m Height Bastion Barrier,2.21m Perimeter Security Bastion Barrier,Galfan Coated Concertainer |
||
2.21m Height Defensive Metal Welded Barrier Bag In Perimeter Security
Description:
Military and Defensive Barrier is known as Rock basket retaining wall, barrier, flood control barrier, etc. which is made of the steel welded mesh and lined with non-woven textile, can be filled with sand, earth, cement, stone, then as a defensive wall or bunker and widely used in the military to protect safety.It is also with unique design, strength and versatility enable corners to be constructed easily, shaping the defensive barrier to the surrounding landscape and when joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
Specification:
Diameter: 4mm; 5mm
Color: Silver, green, Gray, Blue, Yellow
Material: Galvanized steel wire
Mesh opening: 75*75mm or 3''*3''
Size: height 1.37m* width 1.06m* length 10m
|
ITERM NO. |
HEIGHT |
WIDTH |
LENGTH |
CELLS NO. |
|
PG MIL1 |
54''(1.37M) |
42''(1.06M) |
32'9''(10M) |
5+4=9 cells |
|
PG MIL2 |
24'' (0.61M) |
24''(0.61M) |
4'(1.22M) |
2 cells |
|
PG MIL3 |
39''(1.00M) |
39''(1.00M) |
32'.9''(10M) |
5+5=10 cells |
|
PG MIL4 |
39''(1.00M) |
60''(1.52M) |
32'.9''(10M) |
5×2+5×2=20 cells |
|
PG MIL5 |
24''(0.61M) |
24''(0.61M) |
10'(3.05M) |
5 cells |
|
PG MIL6 |
66''(1.68M) |
24''(0.61M) |
10'(3.05M) |
5 cells |
|
PG MIL7 |
87''(2.21M) |
84''(2.13M) |
91'(27.74M) |
5+4+4=13 cells |
|
PG MIL8 |
54''(1.37M) |
48''(1.22M) |
32'.9''(10M) |
5+4=9 cells |
|
PG MIL9 |
39''(1.00M) |
30''(0.76M) |
30'(9.14M) |
6+6=12 cells |
|
PGMIL10 |
87''(2.21M) |
60''(1.52M) |
100'(30.50M) |
5+5+5+5=20 cells |
|
PG MIL11 |
48''(1.22M) |
12''(0.30M) |
4'(1.22M) |
2 cells |
|
PG MIL12 |
84"(2.13M) |
42"(1.06M) |
108"(33M) |
5+5+5+5+5+5=30 cells |
|
PG MIL19 |
108''(2.74M) |
42"(1.06M) |
10'5'(3.18M) |
6 cells |

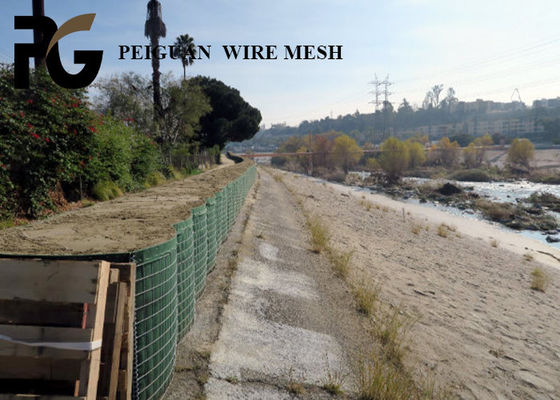

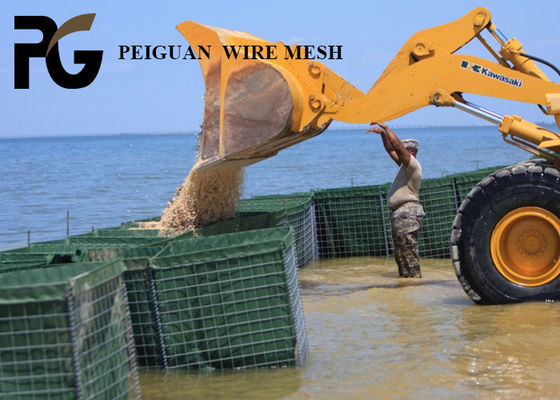

Application:
Packaging Show:
