Flooding Square Hole Hesco Bastion Barrier Galvanized Iron Wire

Flooding Square Hole Hesco Bastion Barrier Galvanized Iron Wire
Flooding Square Hole Hesco Bastion Barrier Galvanized Iron Wire Flooding Square Hole Hesco Bastion Barrier Galvanized Iron Wire Flooding Square Hole Hesco Bastion Barrier Galvanized Iron Wire Flooding Square Hole Hesco Bastion Barrier Galvanized Iron Wire

Large Image :  Flooding Square Hole Hesco Bastion Barrier Galvanized Iron Wire

Product Details:
Place of Origin: PeiGuan Metal Wire Mesh;Anping;China
Brand Name: PeiGuan
Certification: SGS
Model Number: HB-S03
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Usually wrapped with shrink film and packed in pallet.
Delivery Time: According to the order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Sets per Month
Detailed Product Description
Product Name: Hesco Bastion Barrier Dimension: MIL1-MIL12
Type: Welded Mesh Wire Gauge: 4mm, 5mm
Color: Military Green, Beige Hole Shape: Square
Material: Galvanized Iron Wire, Galfan Wire, Low Carbon Iron Wire Usage: Hesco Shooting Range , Military Defensive , Flood Control
High Light:

Flooding Hesco Bastion Barrier

,

Square Hole Hesco Bastion Barrier

,

5mm Military Sand Barrier

Galvanized Iron Wire Square Hole Welded Mesh Hesco Bastion Barrier For Flooding





Product Information

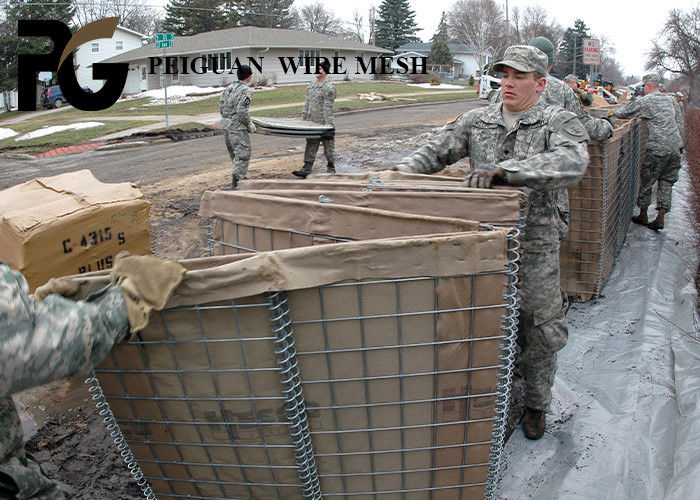

Hesco Bastion Barrier, also known as a fortress, is a modern metal mesh or flood wall composed of a collapsible mesh container and a heavier geotextile fabric used as a temporary fortress for blocking or small-scale attacks. It is composed of an external welded gabion mesh and an internal fabric liner.


Unlike traditional gabions, Hesco Bastion Barrier can hold not only rocks but even finer sediment, and the filling material is locally sourced, making it particularly suitable for use in downstream rivers or coastal areas where rocks are lacking. It was originally used to control flooding and erosion on beaches and marshes. More recently, it has often been used for military purposes. With the help of advanced tools such as excavators and shovels, it can be installed dozens or even hundreds of times more efficiently than traditional sandbags. Its fast installation and robust construction ensure temporary or semi-permanent dikes or barriers against explosions or small arms.



Specifications



PRODUCT ITERM NO. HEIGHT WIDTH LENGTH CELLS NO.
PG MIL1 54''(1.37M) 42''(1.06M) 32'9''(10M) 5+4=9 cells
PG MIL2 24'' (0.61M) 24''(0.61M) 4'(1.22M) 2 cells
PG MIL3 39''(1.00M) 39''(1.00M) 32'.9''(10M) 5+5=10 cells
PG MIL4 39''(1.00M) 60''(1.52M) 32'.9''(10M) 5×2+5×2=20 cells
PG MIL5 24''(0.61M) 24''(0.61M) 10'(3.05M) 5 cells
PG MIL6 66''(1.68M) 24''(0.61M) 10'(3.05M) 5 cells
PG MIL7 87''(2.21M) 84''(2.13M) 91'(27.74M) 5+4+4=13 cells
PG MIL8 54''(1.37M) 48''(1.22M) 32'.9''(10M) 5+4=9 cells
PG MIL9 39''(1.00M) 30''(0.76M) 30'(9.14M) 6+6=12 cells
PGMIL10 87''(2.21M) 60''(1.52M) 100'(30.50M) 5+5+5+5=20 cells
PG MIL11 48''(1.22M) 12''(0.30M) 4'(1.22M) 2 cells
PG MIL12 84"(2.13M) 42"(1.06M) 108"(33M) 5+5+5+5+5+5=30 cells
PG MIL19 108''(2.74M) 42"(1.06M) 10'5'(3.18M) 6 cells



Applications



1. Personnel and material shelters
2. Observation spots

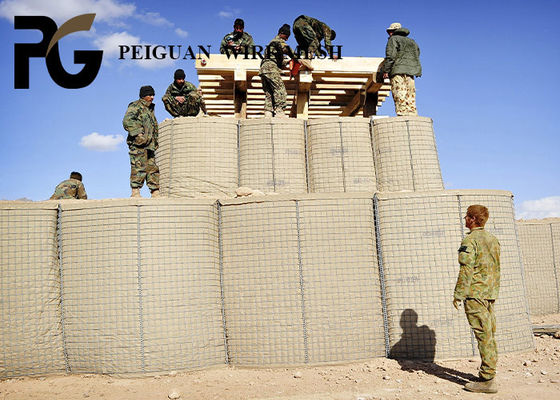

3. Perimeter security and defensive walls
4. Retaining walls
5. Defensive firing positions
6. Equipment fencing
7. Border crossings and road checkpoints
8. Protection of existing structures
9. Explosives and contraband search areas
10. Highway traffic management

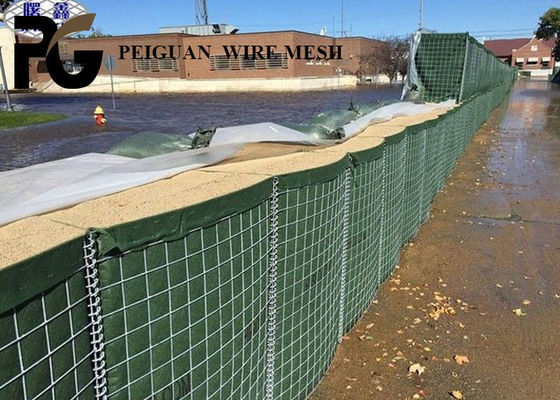

11. Emergency flood control deployment
12. Ammunition depots
13. Flood and erosion control



Features



1. High intensity and impact resistance
2. Long life span
3. Can be filled with sand, cement, stone, soil during normal use
4. Can be used together to any length, or stacked to increase the height
5. Folding packaging, very strong mobility, easy to transport
6. Good for recycling and environmental friendly.
7. Can be used together to any length, can also be folded to enhance the height



Our Service



Pre-sales service



1. We have sufficient stock and many models for you to choose.

2. Good quality, factory price, rapid response and excellent service are what we will provide for you.

3. We can provide free samples

4. All products are produced by our professional workers, and we are equipped with highly working effect foreign trade team. You can trust and choose our service entirely.



After you choose



1. we will check the quality again to reassure you

2. Email you the tracking number and help to trace the package until it reaches you.

3. We will calculate the lowest shipping cost for you and invoice you at the first time.



After-sales service



1. We are glad that customers give us some advice on price and products.

2. If there is any problem with the product, please feel free to contact us by email or phone.



Packaging Display



Flooding Square Hole Hesco Bastion Barrier Galvanized Iron Wire 0Flooding Square Hole Hesco Bastion Barrier Galvanized Iron Wire 1Flooding Square Hole Hesco Bastion Barrier Galvanized Iron Wire 2
