Product Details:
Payment & Shipping Terms:
|
| Name: | Hesco Bastion Barrier | Material: | Hot Dipped Galvnaized Wire |
|---|---|---|---|
| Wire Diameter: | 4mm, 5mm | Hole Shape: | Square |
| Aperture: | 75*75mm Or 3''*3'' | Geotextile: | 300g/m2 |
| Dimension: | MIL1-MIL12 | Type: | Welded Mesh |
| Surface Treatment: | Hot-dipped Galvanized | Packing: | Bulk |
| High Light: | 3''*3'' Hesco Bastion Barrier,Square Hesco Bastion Barrier,Galvanized Steel Military Sand Barrier |
||
Anti- Explosion Galvanized Steel Military Wire Mesh Barrier Sand Wall Hesco Bag
Description:

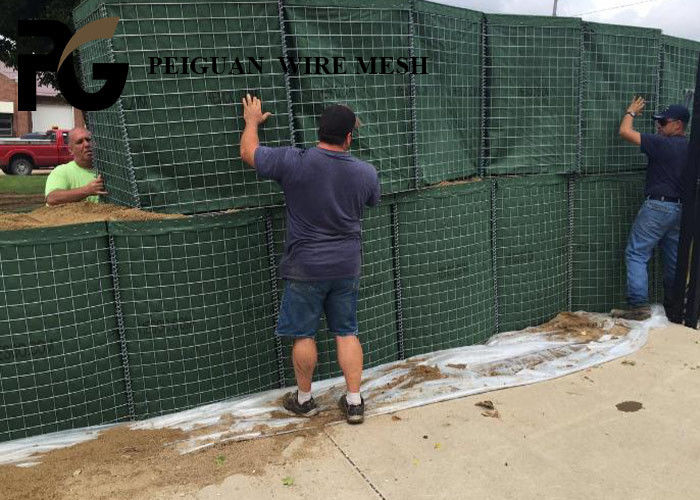

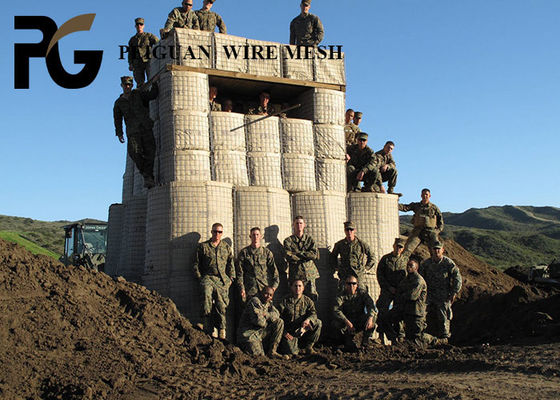

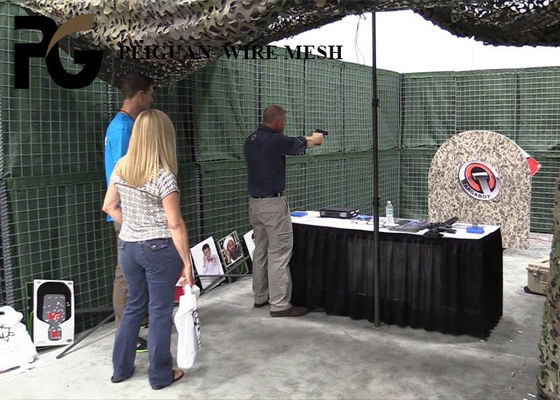

Military Defensive Barrier is called stone basket retaining wall, Hesco barrier, flood barrier, etc. It is made of steel welded mesh and lined with non-woven fabric, which can be filled with sand, earth, cement, stone, and then used as a defensive wall or bunker, widely used in military for security protection, explosion-proof, against rifle bullets, artillery shell fragments, rocket-propelled grenades, especially used in places where gun attacks are frequent, war and conflict are frequent, etc. In addition it is also used for urban flood control, so its another name is Hesco flood barrier.
Specification:
Diameter: 4mm; 5mm
Color: Silver, green, Gray, Blue, Yellow
Material: Galvanized steel wire
Mesh opening: 75*75mm or 3''*3''
Size: height 1.37m* width 1.06m* length 10m
| ITERM NO. | HEIGHT | WIDTH | LENGTH | CELLS NO. |
| PG MIL1 | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) | 5+4=9 cells |
| PG MIL2 | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) | 2 cells |
| PG MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) | 5+5=10 cells |
| PG MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) | 5×2+5×2=20 cells |
| PG MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
| PG MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) | 5 cells |
| PG MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) | 5+4+4=13 cells |
| PG MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) | 5+4=9 cells |
| PG MIL9 | 39''(1.00M) | 30''(0.76M) | 30'(9.14M) | 6+6=12 cells |
| PGMIL10 | 87''(2.21M) | 60''(1.52M) | 100'(30.50M) | 5+5+5+5=20 cells |
| PG MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) | 2 cells |
| PG MIL12 | 84"(2.13M) | 42"(1.06M) | 108"(33M) | 5+5+5+5+5+5=30 cells |
| PG MIL19 | 108''(2.74M) | 42"(1.06M) | 10'5'(3.18M) | 6 cells |
1. A pre-fabricated gabion of galvanized welded mesh steel fitted with a UV-protecting.
2. Polypropylene geo-textile liner.
3. Filling material is an easy- obtained mix of sand and small stones.
4. It can be used together to any length, and can be stacked for additional height.
Application:
Feature:
Hesco barrier with unique design, strength and versatility enable corners to be constructed easily, shaping the defensive barrier to the surrounding landscape and when joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
