Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion

Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion
Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion

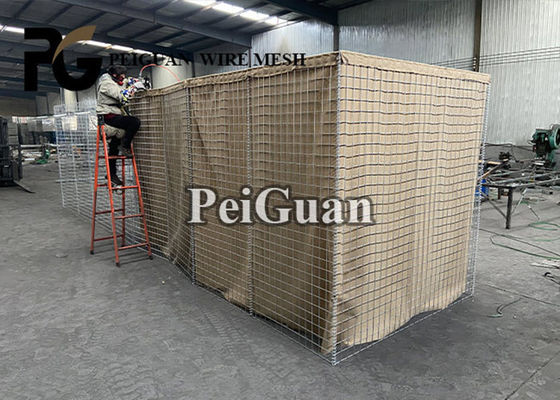

Large Image :  Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion

Product Details:
Place of Origin: PeiGuan Metal Wire Mesh; Anping; China
Brand Name: PeiGuan
Certification: SGS
Model Number: HBB-SC001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: pallet or in bulk
Delivery Time: According to the order
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Set/Sets per Month
Detailed Product Description
Product Name: Bastion Barrier Mateial: Hot Dipped Galvanized
Wire Diameter: 4mm-5mm Mesh Size: 75mm X 75mm Or 3" X 3"
Dimension: 2.21m X 2.13m X 27.74m Cells: 5+4+4=13
Geotextile Fabric: 300g/m^2 Color: Grey, Beige, Or Military Green
High Light:

mil7 hesco containers

,

2.21m hesco containers

,

mil7 galfan coated military hesco barrier

MIL7 2.21m Galfan / Galvanized Military Defensive Gabion Hesco Bastion Barrier



Product Description



The hesco bastion is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against explosions or small-arms.



Military barrier is developed to protect deployed personnel and widely used as fortification to protect facilities in military camps. The military barriers also can create a secure refuge to provide a safe place for refugees. Military defensive barrier is first used in gulf war, till now it is very convenient and efficient to deploy a blast wall rapidly to provide protection from both blast and ballistic threat during the war.



Custom-made military fortification welded hesco barriers is one modern welded gabion basket which can be filled with sand, earth, gravel, aggregates, rubble, bricks, even some fine sediment, etc.



Product Size



Product Item NO. Height Width Length Cells NO.
PG MIL1 54"(1.37M) 42''(1.06M) 32'9''(10M) 5+4=9 cells
PG MIL2 24''(0.61M) 24''(0.61M) 4'(1.22M) 2 cells
PG MIL3 39''(1.00M) 39''(1.00M) 32'.9''(10M) 5+5=10 cells
PG MIL4 39''(1.00M) 60''(1.52M) 32'.9''(10M) 5×2+5×2=20 cells
PG MIL5 24''(0.61M) 24''(0.61M) 10'(3.05M) 5 cells
PG MIL6 66''(1.68M) 24''(0.61M) 10'(3.05M) 5 cells
PG MIL7 87''(2.21M) 84''(2.13M) 91'(27.74M) 5+4+4=13 cells
PG MIL8 54''(1.37M) 48''(1.22M) 32'.9''(10M) 5+4=9 cells
PG MIL9 39''(1.00M) 30''(0.76M) 30'(9.14M) 6+6=12 cells
PG MIL10 87''(2.21M) 60''(1.52M) 100'(30.50M) 5+5+5+5=20 cells
PG MIL11 48''(1.22M) 12''(0.30M) 4'(1.22M) 2 cells
PG MIL12 84"(2.13M) 42"(1.06M) 108"(33M) 5+5+5+5+5+5=30 cells
PG MIL19 108''(2.74M) 42"(1.06M) 10'5'(3.18M) 6 cells

Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion 0

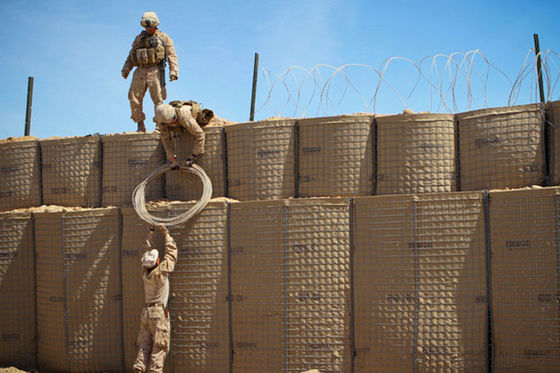

Applications of Military Bastion Wall



● Personnel bunkers ● Guard post
● Police force points and Check points ● Military Defensive barriers
● Perimeter security barrier or border barrier ● Temporary fort and command post
● Observation points and border checkpoints ● Shell proof defence barrier
● Alert or cautionary outpost ● Flood prevention barrier
● Military barrier fortification system ● Permanent or Semi-permanent Dike



Packing



Usually wrapped with shrink film and packed in pallet.

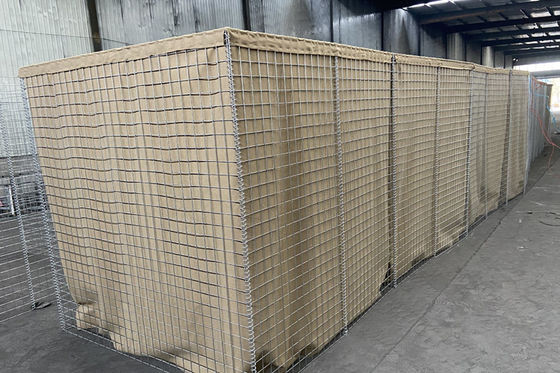

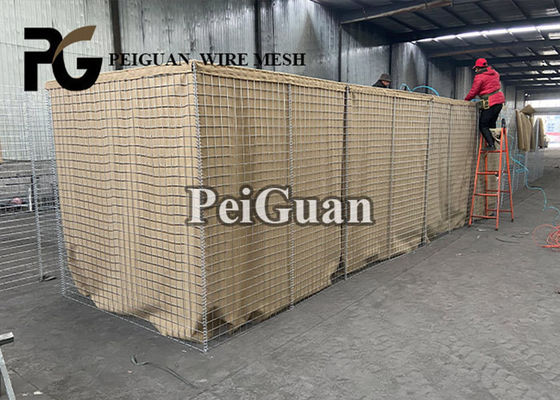

Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion 1Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion 2Mil7 2.21m Hesco Containers Galfan / Galvanized Military Defensive Gabion 3
