Product Details:
Payment & Shipping Terms:
|
Product Name: | V Mesh Security Fencing | Frame Material: | Metal |
---|---|---|---|
Common Wire Diameter: | 3mm-6mm | Length: | 2000mm/2200mm/2500mm/3000mm |
Mesh Size: | 50*200mm | Height: | 1030mm/1230mm/1530mm/1830mm |
Metal Type: | Steel | Post Type: | Peach Post/Square Post |
Color: | Green,Blue,Black,etc | Surface Treatment: | Hot Dipped Galvanized/Powder Coated |
High Light: | 3mm 3d curved fence,v mesh 3d curved fence,curved v mesh wire fencing |
50*200mm Mesh Easily Assembled Green V Mesh Security Fencing For Highway
Product Information

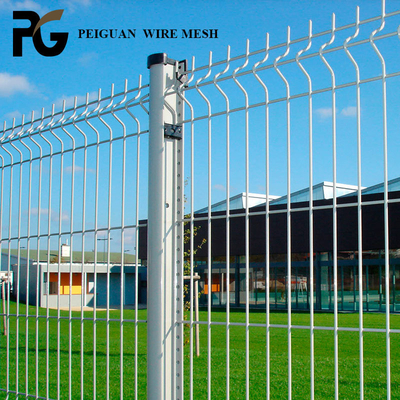

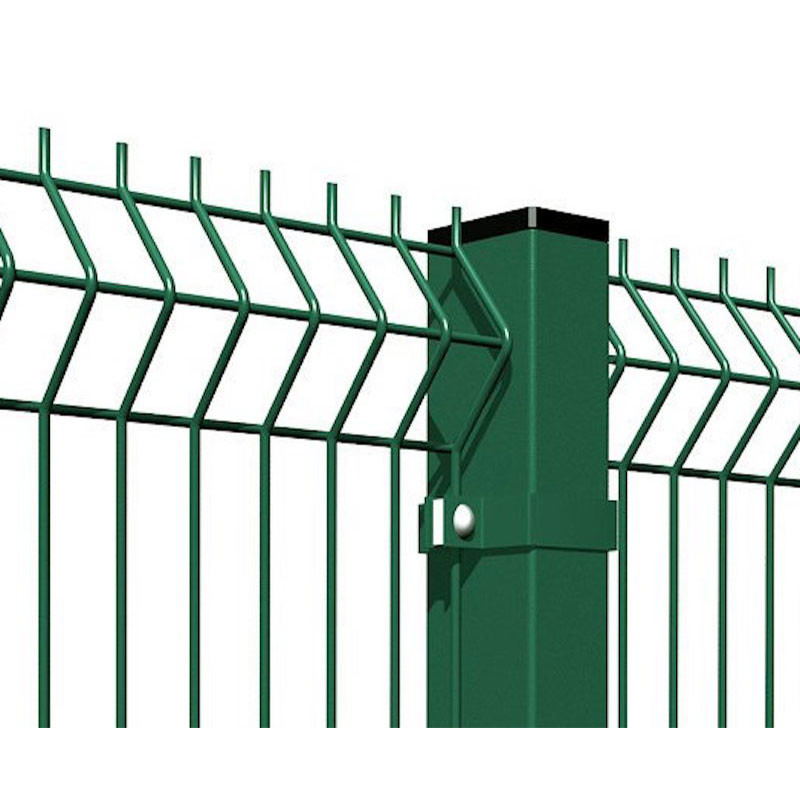

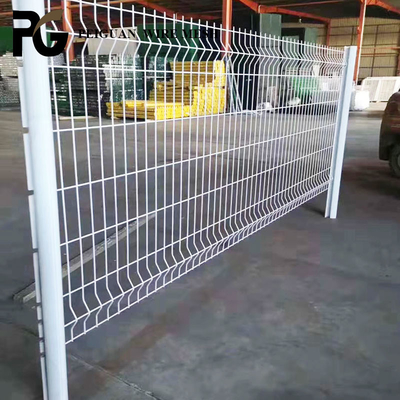

3D Curve mesh safety fence is also called welded mesh fence, welded mesh fence, 3D panel fence or curved mesh fence, with simple structure and beautiful appearance. This kind of fence is very light but very durable. It consists of welding wires together to make a fence. The welding seam is quite firm and the V-shaped curve will make the welded mesh plate more stable and firm.
3D Curve safety fence is different from woven wire fence. Due to the wire welding process, compared with the woven wire mesh, the structure is stronger and the service life is longer. Hot-dip galvanized welding wire fence provides a thicker galvanized layer and stronger galvanized adhesion than electro-galvanized, and the cost is slightly higher. PVC coated welded fences have more colors to choose from than galvanized welded fences.
Specifications
Mesh Size | Wire Diameter | Panel Height | Panel Length | Bending No. | Common Color | Surface Treatment |
50*200mm |
4mm |
830mm | 2m 2.2m 2.4m 2.5m 2.8m 3m |
2 |
GreenRAL6005 Grey RAL 7016 |
1.Hot dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded 4.Powder coated after galvanized wire welded |
1030mm | 2 | |||||
1230mm | 2 | |||||
1530mm | 3 | |||||
1830mm | 4 | |||||
2030mm | 4 | |||||
2230mm | 4 | |||||
2430mm | 4 |
Square Post&Rectangular Post
Post Type | Post Size | Post Thickness | Panel Height | Post Height | Surface Treatment |
Square Post |
40*40mm |
1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2.0mm 2.5mm |
830mm | 1200mm |
1Black tube hot-dipped galvanized 2.Galvanized tube PVC coated 3.Galvanized tube powder coated |
1030mm | 1400mm | ||||
1230mm | 1600mm | ||||
1530mm | 2000mm | ||||
Rectangle Post |
30*50mm |
1830mm | 2400mm | ||
2030mm | 2600mm | ||||
2230mm | 2800mm | ||||
2430mm | 3000mm |
Peach Post
Post Type | Post Size | Thickness | Panel Height | Post Height | Surface Treatment |
Peach Post |
50*70mm |
1.0mm 1.1mm 1.2mm
|
830mm | 1200mm |
Galvanized tube powder coated |
1030mm | 1400mm | ||||
1230mm | 1600mm | ||||
1530mm | 2000mm | ||||
70*100mm |
1830mm | 2400mm | |||
2030mm | 2600mm | ||||
2230mm | 2800mm | ||||
2430mm | 3000mm |
Characteristics
1. The structure of the V-net safety fence is simple. It is mainly composed of metal wire mesh and metal pillars.
2. The durable panel will not tilt or deform.
3. The surface is treated with galvanized, PVC and powder coating to resist corrosion and rust.
4. There are many colors to choose from, such as green, black, blue, white, etc.
5. The surface is smooth without sharp edges.
6. Modern design, V-shaped curve.
7. The bending curve has 2, 3, 4 according to the height of the panel.
8. Large opening mesh provides high visibility.
9. Connect the panel to the column with clips, screws, and washers, which is easy to assemble.
10. Maintenance-free.
11. Long service life.
12. The stadium is surrounded by 3D barbed wire painted white.
13. 3D wire mesh fences are used in sports field fences
Process
1. Drawing wire
2. Straightening and Cutting
3. Welding
4. Galvanized
5. Pakering
6. PVC/powder spraying
7. Dipped coating
8. Packaging
Applications
1. Industry construction fence.
2. Airport, railway station service area.
3. Highway enclosure.
4. Warehouse protection fence.
5. School sports field, stadium.
6. Garden, park security fence.
7. Residential site.
8. Agriculture security fence.
9. Animal enclosure fence.
