Product Details:
Payment & Shipping Terms:
|
| Product Name: | V Mesh Security Fencing | Wire Diameter: | 3.0mm-6.0mm |
|---|---|---|---|
| Mesh Opening: | 50mm*200mm | Height: | 1030mm/1230mm/1530mm/1830mm |
| Length: | 2000mm/2200mm/2500mm/3000mm | Color: | Green,Blue,Black,White,Grey,etc |
| Surface Treatment: | Hot Dipped Galvanized/Powder Coated | Post Type: | Square; Rectangular; Peach |
| Materials: | Galvanized Steel Wire | Design Style: | Industrial |
| High Light: | Square Green V Mesh Fencing,PVC Coated Green V Mesh Fencing,Grey V Mesh Fence Panels |
||

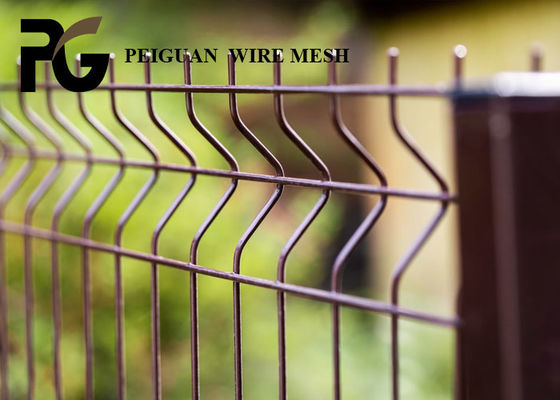

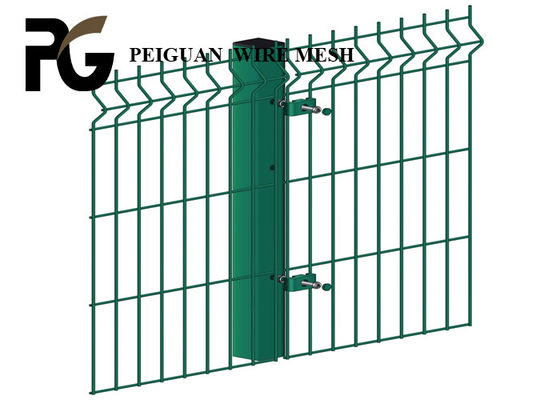

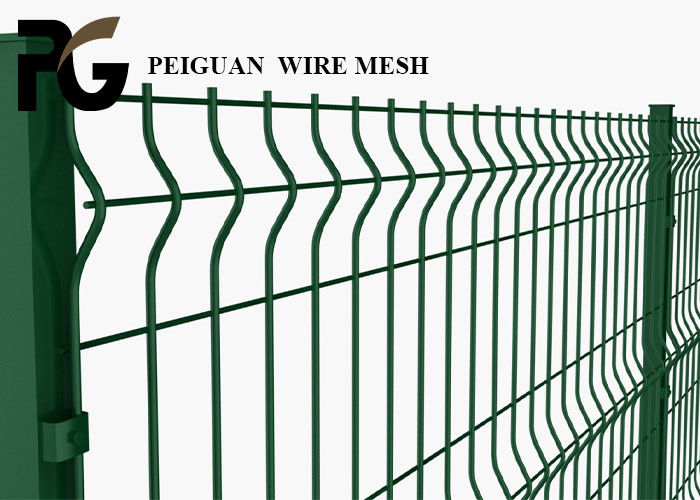

5.0mm Galvanized PVC Coated Green V Mesh Security Fencing For Home Garden Decoration
Product Information
V Mesh Security Fencing is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on. It is very affordable and inexpensive that is why we see most homes using wire fencing for their walls and also very durable and easy to make and fix on fences.
V Mesh Security Fencing is welded by high quality steel wire line, then cold (plating), hot dip plating, PVC coated surface passivation, plasticization treatment, smooth surface, uniform mesh, solid welded joints, good local processing performance, good stability, and strong corrosion resistance.V Mesh Security Fencing is a type of welded wire mesh. It is made of high quality low carbon steel wire, galvanized wire or stainless steel wire connected to metal posts. 3D fence panel has V-shaped bending curves, which look modern and attractive. The sturdy and sleek fence panel is mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area, railway station, etc.
Specifications
Peach Post
| Post Type | Post Size | Thickness | Panel Height | Post Height |
|
Peach Post |
50*70mm |
1.0mm 1.1mm 1.2mm
|
830mm | 1200mm |
| 1030mm | 1400mm | |||
| 1230mm | 1600mm | |||
| 1530mm | 2000mm | |||
|
70*100mm |
1830mm | 2400mm | ||
| 2030mm | 2600mm | |||
| 2230mm | 2800mm | |||
| 2430mm | 3000mm |
Square Post&Rectangular Post
| Post Type | Post Size | Post Thickness | Panel Height | Post Height |
| Square Post |
40*40mm |
1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2.0mm 2.5mm |
830mm | 1200mm |
| 1030mm | 1400mm | |||
| 1230mm | 1600mm | |||
| 1530mm | 2000mm | |||
|
Rectangle Post |
30*50mm |
1830mm | 2400mm | |
| 2030mm | 2600mm | |||
| 2230mm | 2800mm | |||
| 2430mm | 3000mm |
| Mesh Size | Wire Diameter | Panel Height | Panel Length | Bending No. | Common Color |
|
50*200mm |
4mm |
830mm | 2m 2.2m 2.4m 2.5m 2.8m 3m |
2 |
GreenRAL6005 Grey RAL 7016 |
Features
1. High security projects
Wire fence panels with rectangular meshes and horizontal reinforcement ribs makes security be assured
2. Long service life
Anticorrosive layer can life of the products
3. Easy to install
We will provide instruction manual which is easy to understand and easy to assemble
effectively isolates external pollution, greatly prolongs the service
Surface Treatment
1. Hot dipped galvanized after black wire welded
2. PVC coated after galvanized wire welded
3. PE coated after galvanized wire welded
4. Powder coated after galvanized wire welded
Packing terms
1. Fence panel: plastic film + wood / metal pallet.
2. Fence post: every post pack with a plastic bag (the cap is covered well on the post)+metal pallet.
3. Accessory: small plastic bag + carton box.
