Product Details:
Payment & Shipping Terms:
|
| Product Name: | Double Wire Fence | Material: | Metal |
|---|---|---|---|
| Wire Diameter: | 3.00-5.00mm | Mesh Size: | 50x100mm |
| Length: | 10-50m | Height: | 600-2000mm |
| Surface Treatment: | Galvanized+PVC Coated | Colors: | Green, White, Black, Etc. |
| Post Type: | Square Post | Feature: | Easily Assembled, Sustainable |
| High Light: | Powder Coated Double Wire Fence Panel,SGS Double Wire Fence Panel,Pool Security 868 Mesh Fencing |
||

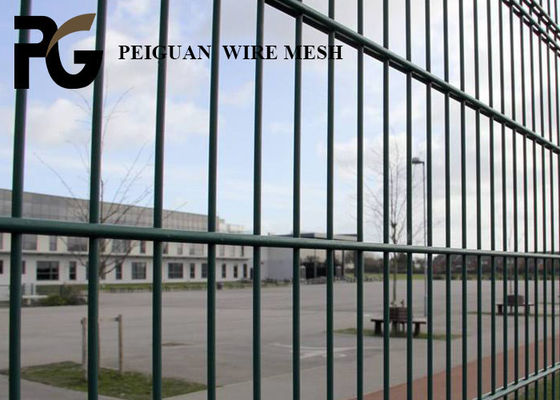

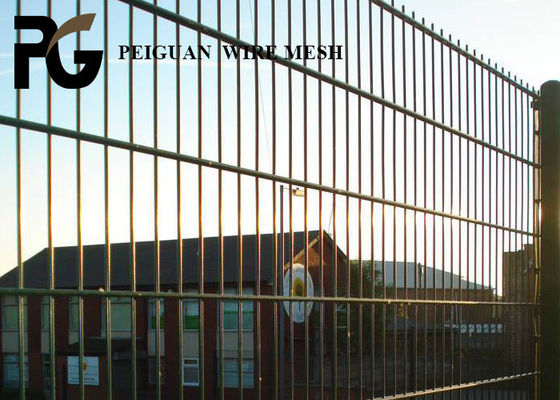

Powder Coated Hard Metal Welded Double Wire Fence For Pool Security Fence
Description:
Double wire fencing, also known as double wire fencing, is an extremely strong and rigid mesh fencing system with a special structure i.e.: double horizontal lines welded to a single vertical line - more durable and stable than ordinary fencing. The mesh holes are generally 50mm x 200mm aperture, which ensures visibility for filming and viewing, but also prevents damage from thieves and the double wire fence panels have double horizontal large diameter poles connected on both sides, increasing the rigidity of the panels, which can also be made according to the purchasing requirements V-bending, further adding to the strength of the panels or providing barbed wire or razor wire to be installed at the top of the fence.
Specification:
Panel-Type A (6-5-6)
| Mesh Size | Wire Thickness | Panel Width | Weight | Height |
|
50*200mm 55*200mm |
1* ∅5mm Vertical wire 2* ∅6mm Horizontal wire |
2.50m |
9.00kg/11.50kg/ 14.20kg/16.80kg/ 19.30kg/21.90kg/ 24.60kg/27.10kg/ 29.20kg/31.70kg |
0.63m/0.83m 1.03m/1.23m 1.43m/1.63m 1.83m/2.03m 2.23m/2.43m |
Panel-Type B (8-6-8)
| Mesh Size | Wire Thickness | Panel Width | Weight | Height |
|
50*200mm 55*200mm |
1* ∅6mm Vertical wire 2* ∅8mm Horizontal wire |
2.50m |
14.60kg/18.80kg/ 23.00kg27.10kg/ 31.30kg/35.40kg 39.50kg/43.70kg/ 48.00kg/52.00kg |
0.63m/0.83m/ 1.03m/1.23m/ 1.43m/1.63m/ 1.83m/2.03m/ 2.23m/2.43m |

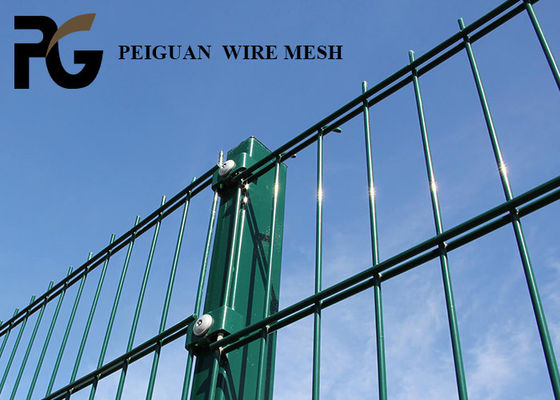

Post size
|
SHS tube |
60*60mm, 1.5-4mm |
|
RHS tube |
60*40/80*40mm, 2.0-2.5mm |
|
Peach post |
50*70/60*90/70*100mm,1.2mm or 1.5mm |
|
Surface treatment |
Galvanized and Electrostatic polyester powder coated |
|
Length |
On the basis of panel height |
|
Base plate |
Available |
|
Rain hat |
plastic or metal |
|

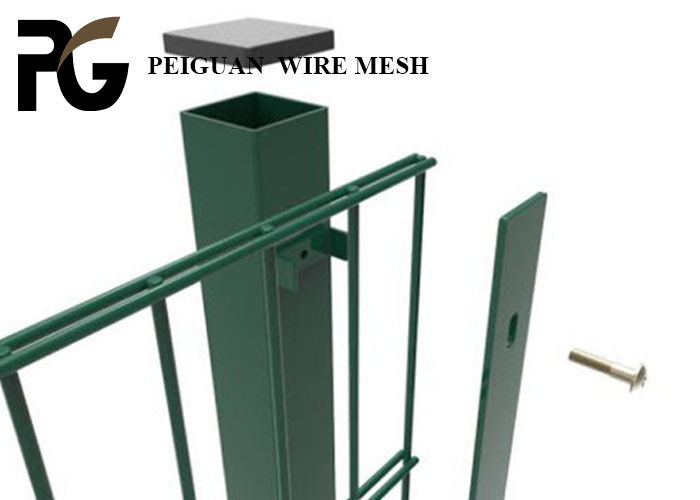

Fittings |
8*40mm safety bolt and 47*25mm steel clips are required |
Detail:
1. Year of professional guardrail experience, quality is guaranteed, to create a perfect guardrail for you.
2. After a unique humanized design, integrated molding, the overall strength is greatly improved.
3. Using new building materials, physical properties such as rigidity, elasticity, corrosion resistance.
4. The soft tons can coordinate the surrounding scenery with the modern urban space and natural environment.
5. Can be costumed according to customer requirements.
Feature:
With its grid structure, aesthetic and practical features and landscaping, double wire fencing has been increasingly used as a perimeter fence for schools, houses, hospitals and public areas. In addition, due to its characteristics of being easy to transport and install, double wire fencing is suitable for mountainous areas, hillsides and meandering areas, subject to the limitations of the particular terrain.
Service:
1. Free samples will be provided and the courier fee will be paid by the buyer.
2. We have sufficient stock, many styles for you to choose and can deliver in short time.
3. OEM and ODM orders are accepted, any kind of logo printing or design is available.
4. Good quality + factory price + fast response + reliable service is what we try our best to provide for you.
5. All our products are produced by our professional workers and we have our high working effect foreign trade team. You can trust our service completely.
After your choose:
1. We will calculate the cheapest shipping cost and invoice you at the first time.
2. Check the quality again and then send it to you in 1-2 working days after your payment.
3. Email you the tracking number and help to trace the package until it reaches you.
