Anping County PeiGuan Metal Wire Mesh Products Co.,Ltd
Home ProductsDouble Wire Fence

50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing

China Anping County PeiGuan Metal Wire Mesh Products Co.,Ltd certification
Fantastic company. So helpful and friendly. Nothing is too much trouble even though I had many questions. Received the fence much faster than I expected. Very good quality. My customers are very pleased with the fence. This easily the best company from China I have done business. I can't recommend them enough.

—— Maja Bjornsdotter

Fast, compenent, good wire mesh fence product quality and great service. We will definitely be a returning customer.

—— Harald Schreiner

I'm Online Chat Now

50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing

50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing
50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing 50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing 50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing 50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing

Large Image :  50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing

Product Details:
Place of Origin: PeiGuan Metal Wire Mesh; Anping; China
Brand Name: PeiGuan
Certification: SGS
Model Number: DWF-J02
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: Negotiable
Packaging Details: pallet or in bulk
Delivery Time: 16-24DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets per Month
Detailed Product Description
Product Name: Double Wire Fence Material: Metal
Wire Diameter: 3.00-5.00mm Mesh Size: 50x100mm
Length: 10-50m Height: 600-2000mm
Surface Treatment: Galvanized+PVC Coated Colors: Green, White, Black, Etc.
Post Type: Square Post Feature: Easily Assembled, Sustainable
High Light:

Home Protection 50x100mm Double Wire Fence

,

50x100mm Ornamental Double Wire Fence

,

Home Protection sgs 656 Mesh Fencing

50x100mm Pvc Coated Ornamental Double Wire Fence For Home Protection



Description:



Double wire fencing, also known as two dimensional security fencing and double wire panel fencing. From a distance, it looks like a normal fence panel, however it is welded with two horizontal wires, adding to the robustness of the fence. Double wire fencing can be either the normal type with huge holes or 358 fencing with smaller holes. Typically, 868 and 656 are the most common types of welded twin wire panel fencing. 868 type welded wire fencing means that the panels have two horizontal wires of 8 mm diameter and one vertical wire of 6 mm diameter. It is quite popular in European countries, such as Germany.



Specification:



Panel-Type A (6-5-6):



Mesh Size Wire Thickness Surface Treatment Panel Width Weight Height

50*200mm

55*200mm

1* ∅5mm Vertical wire

2* ∅6mm Horizontal wire

Galvanized  Electrostatic

polyester powder coated

2.50m

9.00kg/11.50kg/

14.20kg/16.80kg/

19.30kg/21.90kg/

24.60kg/27.10kg/

29.20kg/31.70kg

0.63m/0.83m/

1.03m1.23m/

1.43m/1.63m/

1.83m/2.03m/

2.23m/2.43m



Panel-Type B (8-6-8):



Mesh Size Wire Thickness Surface Treatment Panel Width Weight Height

50*200mm

55*200mm

1* ∅6mm Vertical wire

2* ∅8mm Horizontal wire

Galvanized Electrostatic

polyester powder coated

2.50m





14.60kg/18.80kg/

23.00kg/27.10kg/

31.30kg/35.40kg/

39.50kg/43.70kg/

48.00kg/52.00kg







0.63m/0.83m/

1.03m/1.23m/

1.43m/1.63m/

1.83m/2.03m/

2.23m/2.43m




Post:



SHS tube 60*60mm, 1.5-4mm
RHS tube 60*40/80*40mm, 2.0-2.5mm
Peach post 50*70/60*90/70*100mm,1.2mm or 1.5mm
Surface treatment Galvanized and Electrostatic polyester powder coated
Length On the basis of panel height
Base plate Available
Rain hat plastic or metal
Fittings 8*40mm safety bolt and 47*25mm steel clips are required



50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing 0

Application:

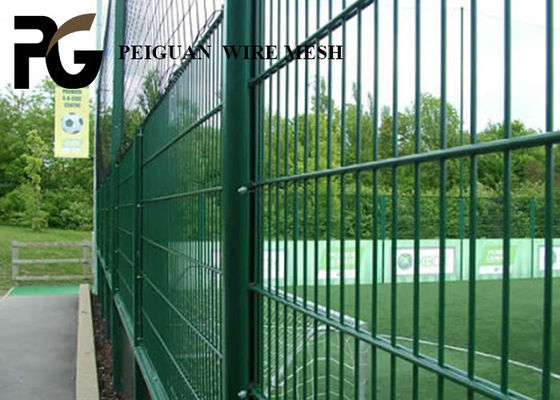

1. Parks and living areas: Double wire fence adopts grid structure, beautiful and practical, beautify the environment. In addition, double-line fences facilitate plant climbing and are widely used in parks and living areas.

2. Safety fences: Double wire fence widely used in industrial sites, sports fields, entertainment venues, schools and nurseries as safety fences.

3. Rugged land: Due to the characteristics of the double barbed wire, it is easy to transport and install, and is not restricted by special
terrain. It is adapted to mountains, hillsides and winding areas.

4. In airports: In airports and military bases, doubl wire fence is used as a professional fence. When adding elbows, razor wire, barbed wire and
other safety accessories, it can further protect the reinforced part.



Packing terms:



1. 50-80sets/pallet,wraped with plastic film interside,packed in pallet
2. Or as customer requirement



50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing 1

50x100mm Double Wire Fence , Home Protection 656 Mesh Fencing 2
