|Product Name:||Security Metal Fencing||Frame Material:||Metal|
|Wire Diameter:||3-5mm||Mesh Opening:||50*200mm,50*150mm,75*150mm Or As Your Request|
|Length:||10m,15m,20m||Height:||6 Foot, 8 Foot|
|Feature:||Easily Assembled, Eco Friendly||Width:||2.0-2.5m|
|Material:||Low-Carbon Iron Wire||Metal Type:||Steel|
20m Anti Climb Wire Mesh Fencing,
Anti Climb Wire Mesh Fencing,
Husbandry Steel Security Fencing
PVC Coated Galvanized Iron Mesh Anti Climb Security Metal Fencing

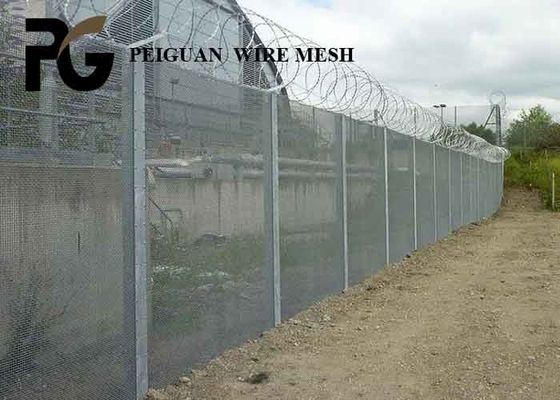

Security Metal Fencing also known as 358 fence (3" x 0.5" x 8 gauge),referred to as "prison fence" or anti-climbing fence, is a special type of fence panels, "358" comes from its measurement of 3" x 0.5" x 8 gauge, which is equivalent to approximately 76.2mm x 12.7mm x 4mm metric, which we can produce in our city, this production offers the best performance, durability and appearance value. Security metal fence is a specialized structure designed for high security environments, combined with a steel frame, coated with heavy zinc or RAL colored powder coating. It consists of horizontal and vertical mesh lines that are tightly aligned to prevent people from putting their fingers through the holes and eventually creeping up the fence.
|Panel Type||Height||Width||Hole opening||Wire thickness|
|Curvy Wire Mesh Fence/3D Fence||1.8-2.5m||2m-3m||50*100mm,50*200mm||3-5mm|
|Chain Link Fence||1.8-2.5m||10m-30m||50*50mm,60*60mm||3-5mm|
Wire Drawing → Wire Straightening & Wire Cutting → Welding →Folds/Curves Bending
|Profile||Wall Thickness||Surface Treatment||Length||Base Plate|
|2700mm I+530mm V||Available
|3100mm I+630mm V|
|3600mm I+730mm V|
Posts and Pipes
Post and pipe finishes are classified as galvanized or coated. You can choose either one. The pipe and tube tops are covered by plastic and rainproof caps. You can intend to cover 30 cm and add the base depending on the environment and the installation method.
1. Residence district
2. 358 wire mesh fence gates
3. Feeding and husbandry
4. Electrical sub-station fencing
5. Sub-station security fencing
6. Prevention for road
7. Seaport and garden
8. Psychiatric hospital security fencing
9. Factory machine guards
1. High strength
2. Good steel natural capacity
3. Wonderful shape
4. Wild field of vision,
5. Easy to install,
6. Best weather resistance.
7. Emergency and electronic detection systems.
1. Fence panel: plastic film + metal pallet
2. Fence post: every post pack with a plastic bag (the cap is covered well on the post) + metal pallet
3. Accessory: small plastic bag +carton box
4. Standard export packing or as your requirement.
High security mesh panels are packaged in plastic film then stored and transported on wooden pallets. Each package is firmly attached to the pallet by a special type tape.
