Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength

Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength
Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength

Large Image :  Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength

Product Details:
Place of Origin: PeiGuan Metal Wire Mesh; Anping; China
Brand Name: PeiGuan
Certification: SGS
Model Number: BRC-J06
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: Negotiable
Packaging Details: pallet or in bulk
Delivery Time: According to the order
Payment Terms: L/C, T/T
Supply Ability: 10000 Square Meter/Square Meters per Week
Detailed Product Description
ProductName: BRC Fence Mesh Size: 50*100mm, 50*150mm, 50*200mm,etc
Material: Low Carbon Steel Wire Usage: Garden Decoration
Wire Diameter: 3.0-6.0mm Panel Width: 1000mm,1500mm,2000mm,
Panel Height: 900mm,1200mm,1500mm, Surface Treatment: Pvc Coated, Powder Coated Or Galvanized
Color: Available Any RAL Service: 3D Modeling, Video Of Installation
High Light:

Polyester Roll Top Weld Mesh Fencing

,

1000mm Roll Top Weld Mesh Fencing

,

50x150mm Roll Top Fence Panels

50*150mm Popular Colors Polyester Powder Coated Roll Top Welded Fence

Description:

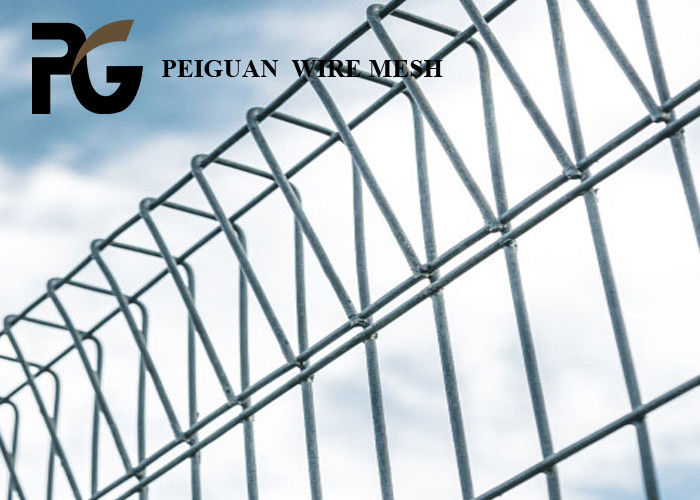

BRC fencing, also known as roll top fencing, is made from high strength steel wire welded together and curved at its top and bottom to form a triangular roll top surface. It is a specially designed welded wire mesh fence with unique top and bottom 'rolled' edges to provide a strong structure and accurate mesh opening. Its rolled edges smooth the bottom and top of the fence to avoid scratching pedestrians, and also give maximum rigidity and good visibility.

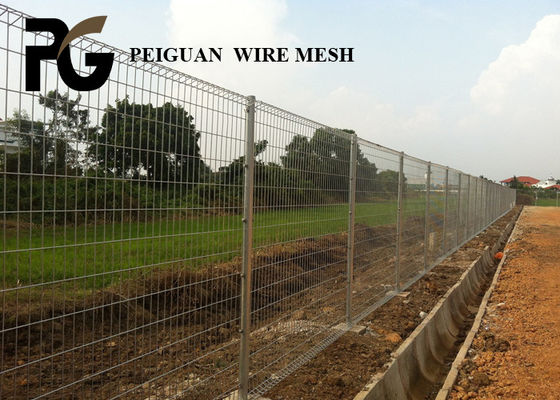

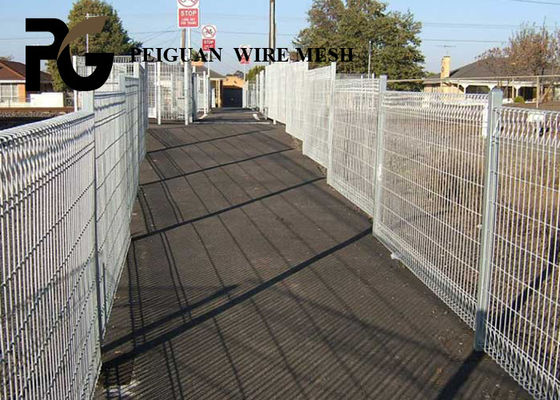

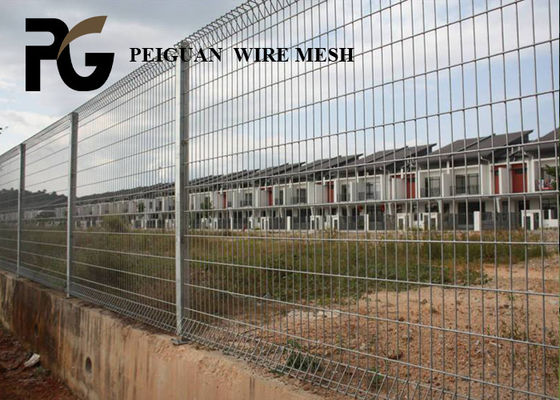

Roll top fencing is very popular in Singapore, Japan, Korea and South East Asia as a safety fence or barrier, mostly used in parks, schools, playgrounds, factories, car parks, residential communities etc.

Specification of Panel:


Material

low carbon steel wire

Wire diameter

3.0–6.0 mm

Surface treatment

1.Hot dipped galvanized
2.Electro galvanized then PVC/PE coated
3.Electro galvanized then polyester powder coating

Grammage

1.Hot dipped galvanized:505 g/m2
2.Electro galvanized: 8–12 g/m2

Thickness

1.PVC/PE coated:0.8–1.2 mm
2.polyester powder coating:0.1 mm

Height (mm)

900, 1200, 1500, 1800, 2100, 2400.

Width (mm)

1000, 1500, 2000, 2400, 2500, 3000.

Mesh size (mm)

50*100, 50*150, 50*200, 75*200, 75*300, 100*200, 100*300.

Post Style

Square post; Rectangle Post; Peach post

Painting Color

Any RAL Series Color ( Normal RAL6005-Dark Green,RAL9005-Black)

Steel Clamps

 On request Bolts & Nuts

Packing terms1>fence panel: plastic film + metal/wooden pallet;
2>fence post: plastic bag + metal/wooden pallet;
3>fence accessories: plastic bag + carton box.

Or packing according to your requirements
Benefits

1.Suitable where safety is a consideration
2.Aesthetic appearance
3.High rigidity
4.Excellent through vision
5.Wide range of colour options
6.Available as a complete system


Specification of post:


Post StylePost Size
Square/Rectangular Post40x60mm
60x60mm
60x80mm
Peach Post50x70mm
70x100mm
Round Post42x1.5mm
48x1.5mm
60x1.5mm


Application:


  • Farm fencing.
  • Residential fencing.
  • Roads, railways.
  • Terrace fences.
  • Airport fences.
  • Sports stadium fences.
  • Municipal fences.
  • Bridge fences.
  • Building railings.
  • Air Conditioning Fences
  • Agricultural Fence


Service:

1. Free samples will be provided and the courier fee will be paid by the buyer.
2. We have sufficient stock, many styles for you to choose and can deliver in short time.
3. OEM and ODM orders are accepted, any kind of logo printing or design is available.
4. Good quality + factory price + fast response + reliable service is what we try our best to provide for you.
5. All our products are produced by our professional workers and we have our high working effect foreign trade team. You can trust our service completely.

After your choose:
1. We will calculate the cheapest shipping cost and invoice you at the first time.
2. Check the quality again and then send it to you in 1-2 working days after your payment.
3. Email you the tracking number and help to trace the package until it reaches you.

Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength 0Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength 1Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength 2
Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength 3Polyester 50x150mm Roll Top Weld Mesh Fencing High Strength 4
