Powder Coated Welded 5mm Double Wire Fence Panels

small.img.alt small.img.alt small.img.alt

Large Image :  Powder Coated Welded 5mm Double Wire Fence Panels

Product Details:
Place of Origin: PeiGuan Metal Wire Mesh; Anping; China
Brand Name: PeiGuan
Certification: SGS
Model Number: DWF-001
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: Negotiable
Packaging Details: pallet or in bulk
Delivery Time: 16-24DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Sets per Month
Detailed Product Description
Product Name: Double Wire Fence Material: Steel Metal
Wire Diameter: 3.00-5.00mm Mesh Size: 50x100mm, 50x200mm
Length: 10m, 30m, 50m Height: 600-2000mm
Surface Treatment: Galvanized+PVC Coated Colors: Green, White, Black, Etc.
Post Type: Square Post Feature: Easily Assembled, Sustainable
High Light:

5mm double wire fence


powder coated double wire fence


5mm double loop wire fencing

Beautiful Shape Powder Coated Double Wire Garden Fence For Conservation




Double wire fence is a flat panel, constructed from double horizontal wires and a vertical wire which can create a strong rigid fence when fitted to a RHS post or SHS post. General used in government place, factory land, School playgrounds, Public buildings, Car parks, Business parks and other places.


Double wire fences can be either ordinary large hole wire fences or 358 small hole wire fences.Provide ordinary 2D guardrail two double line spacing two options: each horizontal one double line, each horizontal three double line double line.Usually 868 and 656 are the most common types of welded bimetal plate fencing.Type 868 Welded Wire Fencing means that the panel has two horizontal wire of 8mm diameter and one vertical wire of 6mm diameter.




1. panel size:


Matrial Carbon Steel
Wire Diameter 4.0mm-6.0mm
Surface Treatment

Galvanized (hot dipped galvanized & electro-galvanized)

PVC Coated or Powder Coated

Width 1.80m, 2.20m, 2.50m
Height 0.63m/0.83m/1.03m/1.23m/1.43m/1.63m/1.83m/2.03m/2.23m/2.43m


Type656: 9.00kg/11.50kg/14.20kg/16.80kg/19.30kg/21.90kg/24.60kg/27.10kg/29.20kg/31.70kg


2. Post Size:


SHS tube 60*60mm, 1.5-4mm
RHS tube 60*40/80*40mm, 2.0-2.5mm
Peach post 50*70/60*90/70*100mm,1.2mm or 1.5mm
Surface treatment Galvanized and Electrostatic polyester powder coated
Length On the basis of panel height
Base plate Available
Rain hat plastic or metal
Fittings 8*40mm safety bolt and 47*25mm steel clips are required




Material – Straightening & cut wire – Welding – Galvanizing – Powder coating – Packaging




1. Year of professional guardrail experience, quality is guaranteed, to create a perfect guardrail for you.

2. After a unique humanized design, integrated molding, the overall strength is greatly improved.

3. Using new building materials, physical properties such as rigidity, elasticity, corrosion resistance.

4. The soft tons can coordinate the surrounding scenery with the modern urban space and natural environment.

5. Can be costumed according to customer requirements.




1. Prevent damage:Twin wire panel resists deliberately sabotage.
2. Visibility: See through by holes.
3. Long service life: Galvanized wire and powder coated surface make the panel live a long life.
4. Simple to installation: With accessories like brackets and clamp bars, the panel could be installed into the posts easily.
5. Ideal for secondary operations: The fencing could be disassembled into parts easily for secondary use.


Packing terms:


1. 50-80sets/ pallet , wrapped with plastic film inter side, packed in pallet
2. Or as customer requirement.

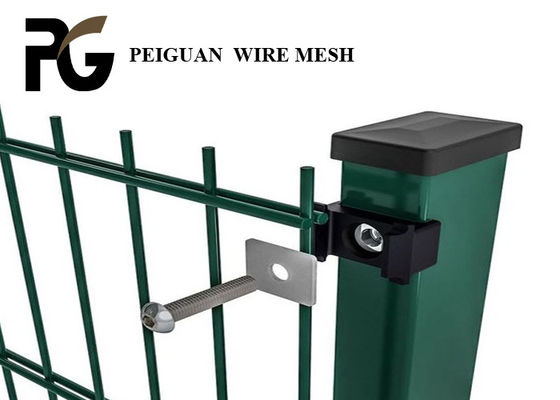

Powder Coated Welded 5mm Double Wire Fence Panels 0

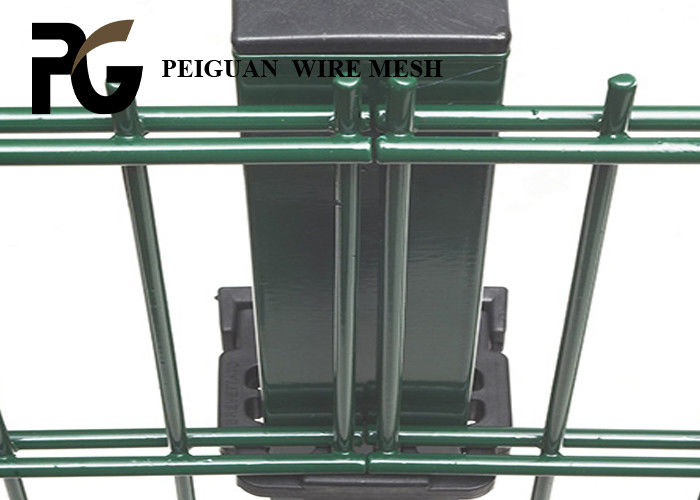

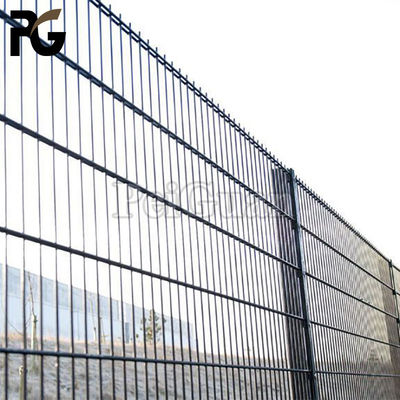

Powder Coated Welded 5mm Double Wire Fence Panels 1Powder Coated Welded 5mm Double Wire Fence Panels 2Powder Coated Welded 5mm Double Wire Fence Panels 3
