Product Details:
Payment & Shipping Terms:
|
| Product Name: | V Mesh Security Fencing | Frame Material: | Low Carbon Steel Wire |
|---|---|---|---|
| Length: | 2000mm/2200mm/2500mm/3000mm | Height: | 1030mm/1230mm/1530mm/1830mm |
| Post Type: | Peach Post/Square Post | Color: | Green, Black, White, Grey, Etc |
| Size: | 50*200mm | Material: | Metal |
| Usage: | Garden Fence, Highway Fence, Sport Fence, Farm Fence | Feature: | Easily Assembled, ECO FRIENDLY, Rodent Proof, Rot Proof |
| High Light: | PVC Coated 3m V Mesh Security Fencing,PVC Coated V Mesh Security Fencing,3000mm PVC Coated Garden Security Fencing |
||

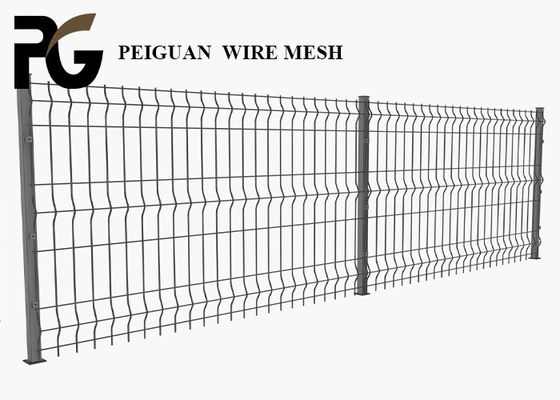

3.0m Bending Welded PVC Coated V Mesh Security Fencing For Garden Decoration
Product description
V mesh security fencing is an economical fencing system composed of welded wire mesh fence panels with longitudinal profiles to form a rigid fence. The fence panels are made of high quality low carbon steel wire welded together and surface treated with electrostatic polyester powder coating on galvanized material. Then the fence panels are connected to the posts by suitable clips. Because of its simple structure, easy installation and beautiful appearance, more and more customers take welded wire mesh fence as the first choice of general protection fence.It is mainly used for the security protection of construction sites, residential buildings, sports fields, warehouses, highway or airport service areas, railway stations, etc. The strong and rounded guardrail plate is mainly used for the security protection of construction sites, residential buildings, sports fields, warehouses, highway or airport service areas, railway stations, etc.
Specifications
| Mesh Size | Wire Diameter | Panel Height | Panel Length | Bending No. | Common Color | Surface Treatment |
|
50*200mm |
4mm |
830mm | 2m 2.2m 2.4m 2.5m 2.8m 3m |
2 |
GreenRAL6005 Grey RAL 7016 |
1.Hot dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded 4.Powder coated after galvanized wire welded |
| 1030mm | 2 | |||||
| 1230mm | 2 | |||||
| 1530mm | 3 | |||||
| 1830mm | 4 | |||||
| 2030mm | 4 | |||||
| 2230mm | 4 | |||||
| 2430mm | 4 |
Peach Post
| Post Type | Post Size | Thickness | Panel Height | Post Height | Surface Treatment |
|
Peach Post |
50*70mm |
1.0mm 1.1mm 1.2mm
|
830mm | 1200mm |
Galvanized tube powder coated |
| 1030mm | 1400mm | ||||
| 1230mm | 1600mm | ||||
| 1530mm | 2000mm | ||||
|
70*100mm |
1830mm | 2400mm | |||
| 2030mm | 2600mm | ||||
| 2230mm | 2800mm | ||||
| 2430mm | 3000mm |
Square Post&Rectangular Post
| Post Type | Post Size | Post Thickness | Panel Height | Post Height | Surface Treatment |
|
Square Post |
40*40mm |
1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2.0mm 2.5mm |
830mm | 1200mm |
1Black tube hot-dipped galvanized 2.Galvanized tube PVC coated 3.Galvanized tube powder coated |
| 1030mm | 1400mm | ||||
| 1230mm | 1600mm | ||||
| 1530mm | 2000mm | ||||
|
Rectangle Post |
30*50mm |
1830mm | 2400mm | ||
| 2030mm | 2600mm | ||||
| 2230mm | 2800mm | ||||
| 2430mm | 3000mm |
Characteristics
1. High security projects
Wire fence panels with rectangular meshes and horizontal reinforcement ribs makes security be assured
2. Long service life
Anticorrosive layer can life of the products
3. Easy to install
We will provide instruction manual which is easy to understand and easy to assemble
effectively isolates external pollution, greatly prolongs the service
Applications
1. Sports facilities
2. Highway enclosure
3. Residential projects
4. Warehouse protection fence
5. Animal enclosure fence
6. Agriculture security fence.
Packing terms
1. Fence panel: plastic film + wood / metal pallet.
2. Fence post: every post pack with a plastic bag (the cap is covered well on the post)+metal pallet.
3. Accessory: small plastic bag + carton box.
Contact Person: Mrs. Xia
