| Product Name: | V Mesh Security Fencing | Materials: | Galvanized Steel Wire |
|---|---|---|---|
| Wire Diameter: | 3.0mm-6.0mm | Mesh: | 50mm * 200mm |
| Hole Shape: | Square | Height: | 1030mm/1230mm/1530mm/1830mm |
| Length: | 2000mm/2200mm/2500mm/3000mm | Folded No: | 2/3/4 |
| Surface Treatment: | Hot Dipped Galvanized/ Powder Coated | Feature: | Easily Assembled, Eco Friendly, |
| High Light: | 3D Curved 2.4m V Mesh Security Fencing,Square 3D Curved V Mesh Security Fencing,1830mm Boundary Wall Wire Fencing |
||

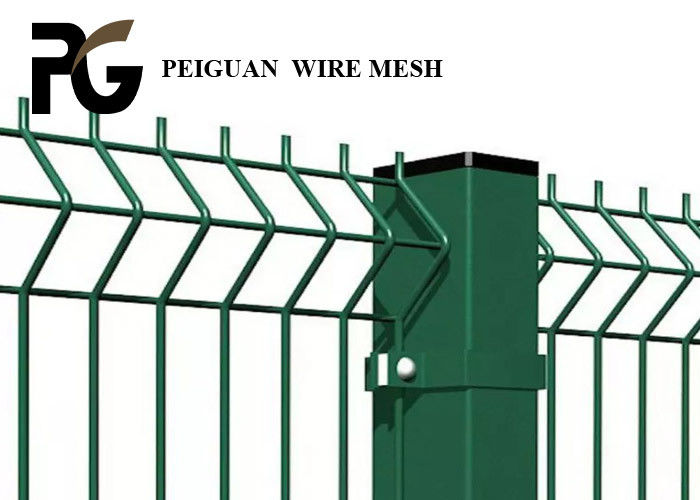

2.4M 3D Curved Bending Iron V Mesh Security Fencing as boundary wall
Description:
V Mesh Security Fencing is mainly used in highway and railway bridge on both sides of the protection zone fence,Airports, ports, terminals security fence,Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation fence,Guest Houses, hotels, supermarkets and entertainment protective fence,etc.
Panel Specification:
| Mesh Size |
Wire Diameter |
Panel Height |
Panel Length |
Bending No. | Common Color | Surface Treatment |
|
50*200mm 50*100mm 55*200mm 55*100mm |
4mm 5mm |
830mm |
2m 2.2m 2.4m 2.5m 2.8m 3m |
2 |
Green RAL 6005 Grey RAL 7016 Brown RAL 8019 Black RAL 9005 White RAL 9010 |
1.Hot dipped galvanized after black wire welded
2.PVC coated after galvanized wire welded
3.PE coated after galvanized wire welded
4.Powder coated after galvanized wire welded |
| 1030mm | 2 | |||||
| 1230mm | 2 | |||||
| 1530mm | 3 | |||||
| 1830mm | 4 | |||||
| 2030mm | 4 | |||||
| 2230mm | 4 | |||||
| 2430mm | 4 |
Square Post & Rectangular Post:
| Post Type | Post Size |
Thickness |
Panel Height | Post Height | Surface Treatment |
| Square Post |
40*40mm 50*50mm 60*60mm |
1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2.0mm 2.5mm |
830mm | 1200mm |
|
| 1030mm | 1400mm | ||||
| 1230mm | 1600mm | ||||
| 1530mm | 2000mm | ||||
| Rectangle Post |
30*50mm 40*60mm 60*80mm |
1830mm | 2400mm | ||
| 2030mm | 2600mm | ||||
| 2230mm | 2800mm | ||||
| 2430mm | 3000mm |
Peach Post:
|
Post Type |
Post Size |
Thickness |
Panel Height |
Post Height |
Surface Treatment |
|
Peach Post |
50*70mm |
1.0mm 1.1mm 1.2mm |
830mm |
1200mm |
Galvanized tube powder coated |
|
1030mm |
1400mm |
||||
|
1230mm |
1600mm |
||||
|
1530mm |
2000mm |
||||
|
70*100mm |
1830mm |
2400mm |
|||
|
2030mm |
2600mm |
||||
|
2230mm |
2800mm |
||||
|
2430mm |
3000mm |
Technology:
The V mesh security fencing is made of low carbon steel wire welded into welded wire mesh, bent by the press bending machine, bending mesh by the customer to decide the number of bending, generally 2-3. The mesh without surface treatment then according to customer needs after hot dip galvanizing treatment, plastic coating or plastic spraying treatment, forming the final V-shaped fence mesh, plastic coating or plastic spraying treatment color according to RAL international color card, the common color to RAL6005 mainly, we can also provide other customer needs of color.
Accessries:
Application:

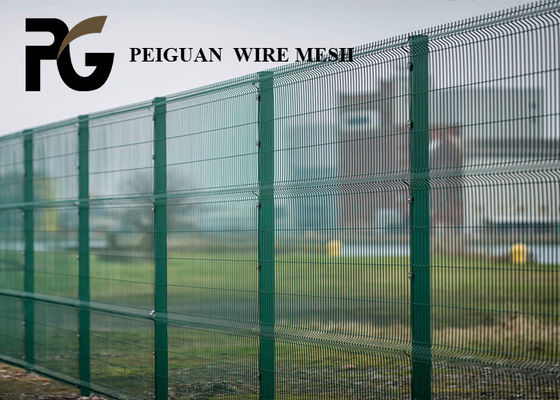

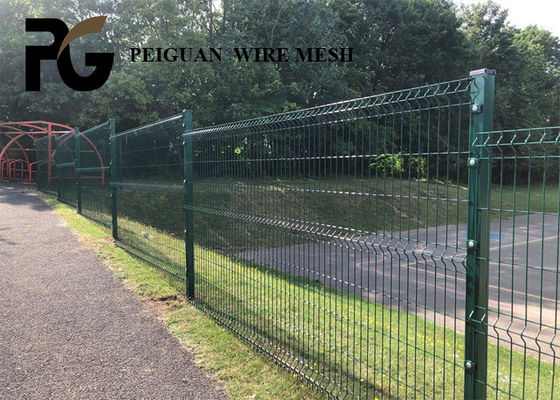

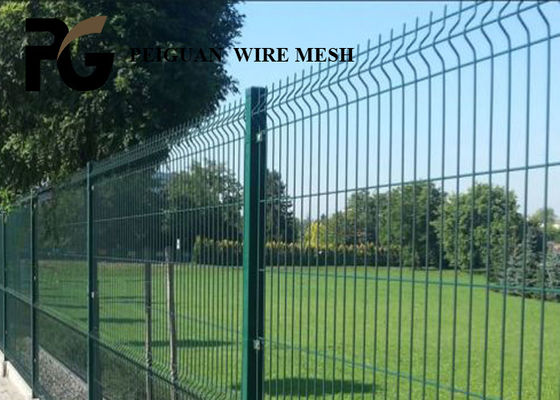

3D panel fence is widely used as decoration or protection for various facilities in industry, agriculture, sports, airport, seaport, transportation, etc.
Mainly used in highway and railway bridge on both sides of the protection zone fence. Airports, ports, terminals security fence. Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation fence. Guest Houses, hotels, supermarkets and entertainment protective fence.
