3d Curved 3.0mm 50 X 100mm V Mesh Security Fencing Powder Coated

China Anping County PeiGuan Metal Wire Mesh Products Co.,Ltd certification
Fantastic company. So helpful and friendly. Nothing is too much trouble even though I had many questions. Received the fence much faster than I expected. Very good quality. My customers are very pleased with the fence. This easily the best company from China I have done business. I can't recommend them enough.

—— Maja Bjornsdotter

Fast, compenent, good wire mesh fence product quality and great service. We will definitely be a returning customer.

—— Harald Schreiner

I'm Online Chat Now

3d Curved 3.0mm 50 X 100mm V Mesh Security Fencing Powder Coated

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  3d Curved 3.0mm 50 X 100mm V Mesh Security Fencing Powder Coated

Product Details:
Place of Origin: Pei Guan Metal Wire Mesh;An Ping;China
Brand Name: PeiGuan
Certification: SGS
Model Number: VMF-S08
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Usually wrapped with shrink film and packed in pallet
Delivery Time: 17-28 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces Per Month
Detailed Product Description
Product Name: V Mesh Security Fencing Wire Diameter: 3.0mm, 4.0mm, 5.0mm, 6.0mm
Mesh Size: 50mm*200mm, 50mm*100mm Height: 1030mm/1230mm/1530mm/1830mm, Etc
Length: 2000mm/2200mm/2500mm/3000mm, Etc Color: Green, Black, White ,etc
Surface Treatment: Hot Dipped Galvanized/Powder Coated/PVC Coated Materials: Galvanized Steel Wire, Low Carbon Steel Wire
High Light:

3 d v mesh security fencing

,

3.0mm v mesh security fencing

,

v mesh security fence powder coated

Factory Supply Cheap Price Decorative Pvc Powder Coated Welded Wire Mesh V Mesh Security Fence


Product description

V Mesh Security Fencing, also known as 3D Panel Fencing or Curved Mesh Fencing, is one of the great ways to keep your home safe and secure from all forms of attack such as armed robbers. It's very affordable and inexpensive that's why we see most homes use barbed wire on the walls, and it's very durable and easy to make and fasten to the fence.

V Mesh Security Fencing is a welded wire mesh. It is made of high quality low carbon steel wire, galvanized wire or stainless steel wire connected with metal column. The 3D guardrail panel adopts a V-shaped curved curve, which is full of modernity. Sturdy and smooth guardrails are mainly used for safety protection in construction sites, residential buildings, sports fields, warehouses, highways or airport service areas, railway stations and other places.

The V Mesh safety fence has a simple structure. It is mainly composed of wire mesh and metal columns. Rugged panels won't sag or warp. Corrosion and rust resistant, with galvanized, PVC and powder coated finishes. There are many colors to choose from, such as green, black, blue, red, white, etc..

Panel Specifications


Mesh SizeWire DiameterPanel HeightPanel LengthBending No.Common ColorSurface
Treatment
50*200mm
50*100mm
55*200mm
55*100mm
4mm
5mm
830mm2m
2.2m
2.4m
2.5m
2.8m
3m
2

GreenRAL6005

Grey RAL 7016
Brown RAL 8019
Black RAL 9005
White RAL 9010

1.Hot dipped galvanized after black wire welded
2.PVC coated after galvanized wire welded

3.PE coated after galvanized wire welded

4.Powder coated after galvanized wire welded






1030mm2
1230mm2
1530mm3
1830mm4
2030mm4
2230mm4
2430mm4


Square Post&Rectangular Post


Post TypePost SizePost ThicknessPanel HeightPost HeightSurface Treatment



Square Post


40*40mm
50*50mm
60*60mm

1.0mm
1.1mm
1.2mm
1.5mm
1.8mm
2.0mm
2.5mm

830mm1200mm

1.Black tube hot-dipped galvanized
2.Galvanized tube PVC coated
3.Galvanized tube powder coated

1030mm1400mm
1230mm1600mm
1530mm2000mm


Rectangle Post


30*50mm
40*60mm
60*80mm

1830mm2400mm
2030mm2600mm
2230mm2800mm
2430mm3000mm


Peach Post


Post TypePost SizeThicknessPanel HeightPost HeightSurface Treatment





Peach Post



50*70mm

1.0mm
1.1mm
1.2mm







830mm1200mm




Galvanized tube powder coated

1030mm1400mm
1230mm1600mm
1530mm2000mm



70*100mm

1830mm2400mm
2030mm2600mm
2230mm2800mm
2430mm3000mm



Process


1. Predetermined material wire and pipe
2. Material wire galvanized layer test
3. Weld the wire mesh and cut the tube according to the size
4. Panels and pipes painted or galvanized
5. Packing and loading


Usage


1. High Security Projects
2. Boundaries
3. Transportation projects
4. Industrial facilities
5. Sports facilities
6. Residential Projects

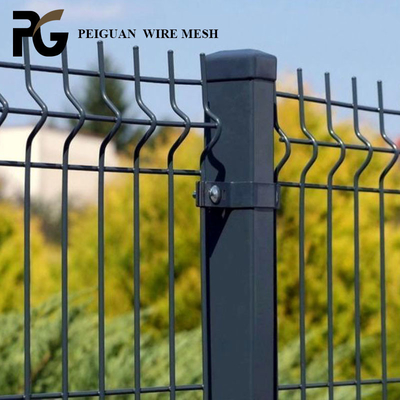

3d Curved 3.0mm 50 X 100mm V Mesh Security Fencing Powder Coated 0

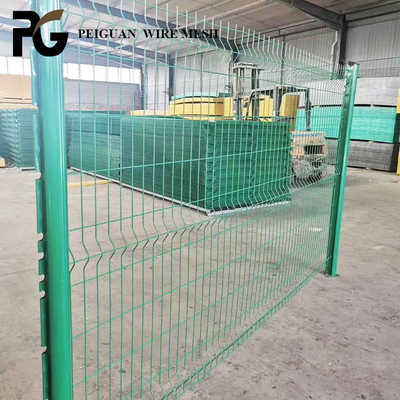

3d Curved 3.0mm 50 X 100mm V Mesh Security Fencing Powder Coated 1

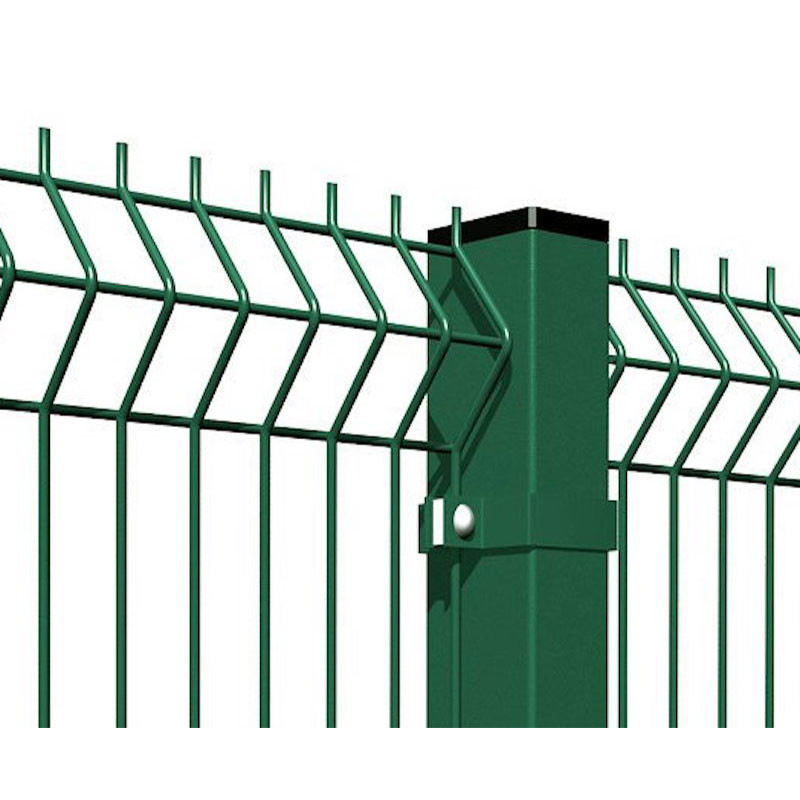

3d Curved 3.0mm 50 X 100mm V Mesh Security Fencing Powder Coated 2
