Product Details:
Payment & Shipping Terms:
|
| Product Name: | Welded Gabion Box | Gabion Box Size: | 100*30*30 Cm, 100*50*30 Cm, 100*100*50 Cm, 100*100*100 Cm, Etc |
|---|---|---|---|
| Wire Diameter: | 3mm - 6mm | Mesh Hole Size: | 50*50 Mm, 50*100 Mm Etc |
| Packing: | By Carton Box, Pallet Or As Customer's Request. | Finish: | Hot Dip Galvanized, Heavy Zinc Coating, Galfan Coating, Etc |
| High Light: | 6mm welded mesh gabion baskets,erosion resistant welded mesh gabion baskets,square hole galvanized gabion baskets |
||
50*50 Mesh Size Square Hole Galvanized Iron Wire Welded Mesh Gabion
Product description

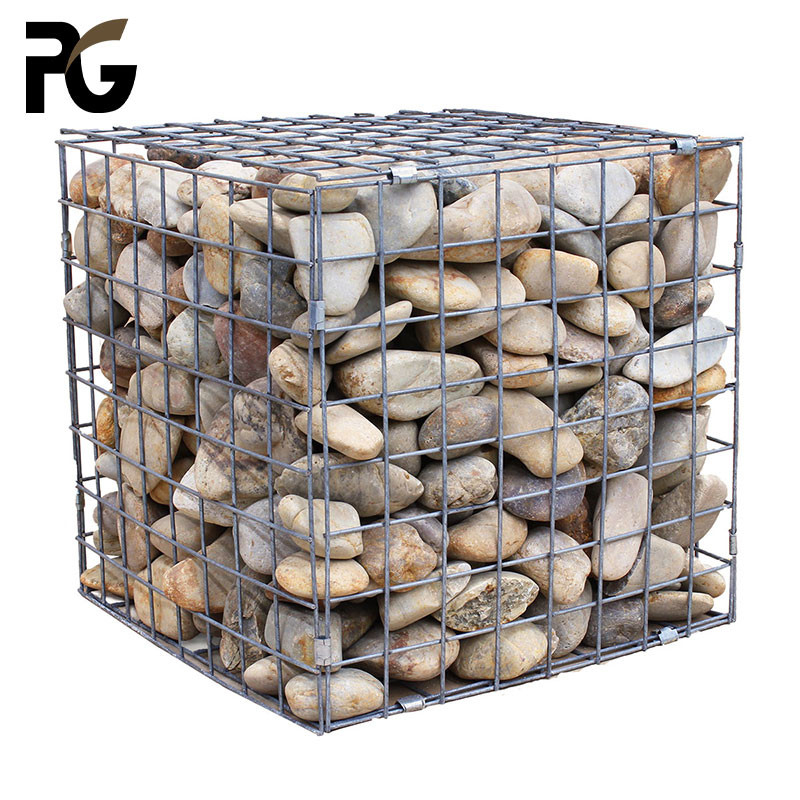

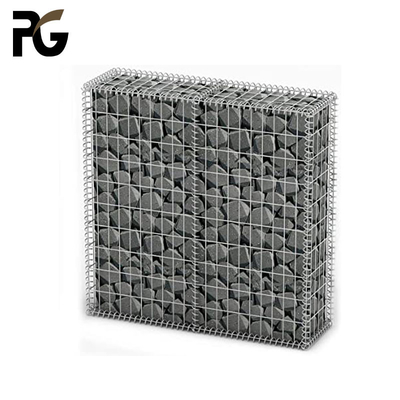

Welded Gabion basket is assembled by welded mesh panels, some mesh panels are connected by crossing spirals or C rings. Its beauty apperance and easily installation successfully get people's attraction.
Gabion boxes and Mattresses are made from 76.2mm x 76.2mm nominal (3" x 3") Welded Mesh, divided by diaphragms at 1 metre centres where necessary with wire diameters 3mm, 4mm or 5mm. Below are the standard sizes we stock we can produce any size. It is best to keep to the sizes specified to minimise costs. If you do require a certain height try to keep to combinations of 75mm the mesh size to avoid spot welding.
Specifications
| Normal Box Size(cm) | Diaphragms | Capacity (m3) | Mesh Size(mm) |
| 100x30x30 | None | 0.09 |
50×50 or 100×50 |
| 100x50x30 | None | 0.15 | |
| 100x100x50 | None | 0.5 | |
| 100x100x100 | None | 1 | |
| 150x100x50 | 1 | 0.75 | |
| 150x100x100 | 1 | 1.5 | |
| 200x100x50 | 1 | 1 | |
| 200x100x100 | 1 | 2 | |
|
Different specifications are available according to customers' special inquiry or detailed drawing. |
|||
Usage
1. Control and guide of water or flood
2. Flood bank or guiding bank
3. Proventing of rock breaking
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Seaport engineering
8. Isolation walls
9. Protection of road
Features
1. Simply fill the stone cage and seal it.
2. Simple installation. No special skills are required.
3. Weather resistance and corrosion resistance under natural damage.
4. The silt in the stones is good for plant growth. Mix with the natural environment to form a whole.
Our Service
1. Provide most of free samples
2. Spot inspection and finished product inspection
3. 24 hours to answer your questions and doubts
About us
Anping PeiGuan Metal Wire Mesh Products Co., Ltd. is one leading manufacturer of hesco barrier ,located in Anping of China ,the famous Wire Mesh Hometown in China. Mainly produces V Mesh Security Fencing, Anti Climb Security Fencing, Australia Temporary Fence, Canada Temporary Fence, Crowd Control Barrier, Hesco Barrier Bastion, Gabion Mesh, Welded Wire Mesh, Chain Link Fence, Airport Security Fencing, BRC Fence, Double Wire Fence,Chicken Wire Mesh, etc.
Our mission is quality first, reputation above all. All of the products should be tested before loading. Only the qualified products can be delivered to the customers.
We have specialized equipments and professional inspectors. We can supply the quality assurance to the customer.
Due to our hard working technicians and the continuously pursue of outstanding quality, we have exported our product to Northern America, Europe, South Africa, Latin America, the Middle East, the Oceania, and Asia, etc.
Contact Person: Mrs. Xia
