Product Details:
Payment & Shipping Terms:
|
| ProductName: | BRC Fence | Wire Diameter: | 5.0 Mm, 6.0 Mm |
|---|---|---|---|
| Material: | Q195 | Panel Height: | 900mm,1200mm,1500mm, |
| Panel Width: | 1000mm,1500mm,2000mm, | Mesh Size: | 50*100mm, 50*150mm, 50*200mm,etc |
| Surface Treatment: | Powder Coated Or Galvanized | Color: | Available Any RAL |
| High Light: | green brc fence,galvanized brc fence,triangle roll top brc fencing |
||
Standard Triangle Welded BRC Galvanized Fencing For Commercial Applications
Description:

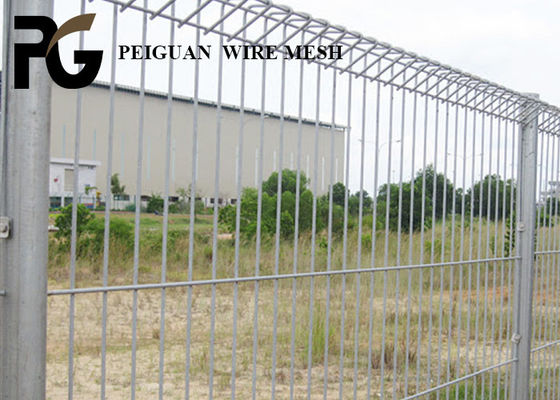

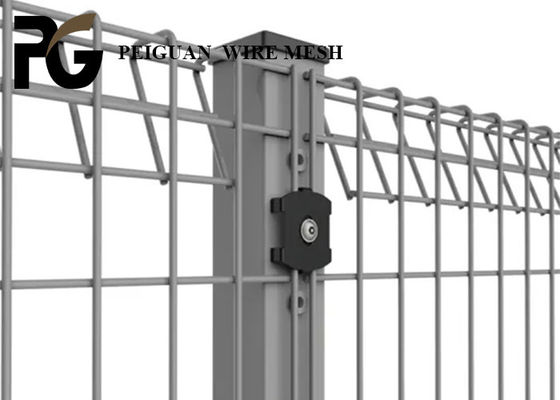

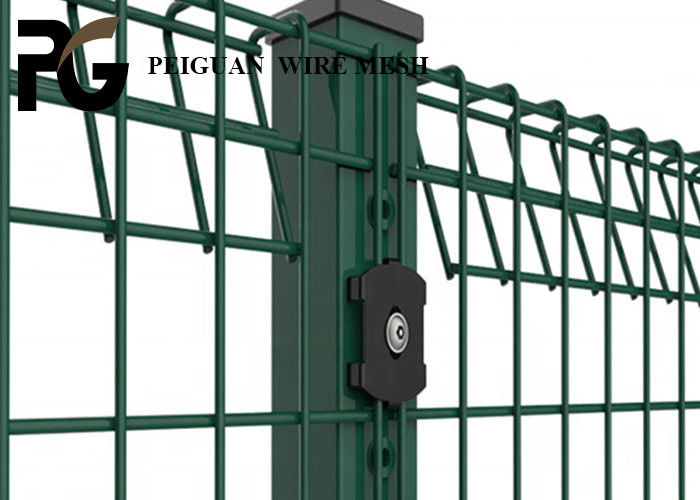

BRC fence, also can be call roll top fence. It is a special welded wire mesh fence with a triangular roll top structure at its top and bottom. In fact, the name of “roll top fence” is derived from this.
Specification of Panel:
|
Material |
low carbon steel wire |
|
Wire diameter |
3.0–6.0 mm |
|
Surface treatment |
1. Hot dipped galvanized 2. Electro galvanized then PVC/PE coated 3. Electro galvanized then polyester powder coating |
|
Grammage |
1. Hot dipped galvanized:505 g/m2 2. Electro galvanized: 8–12 g/m2 |
|
Thickness |
1. PVC/PE coated:0.8–1.2 mm 2. Polyester powder coating:0.1 mm |
|
Height (mm) |
900, 1200, 1500, 1800, 2100, 2400. |
|
Width (mm) |
1000, 1500, 2000, 2400, 2500, 3000. |
|
Mesh size (mm) |
50*100, 50*150, 50*200, 75*200, 75*300, 100*200, 100*300. |
| Post Style |
Square post; Rectangle Post; Peach post |
|
Painting Color |
Any RAL Series Color ( Normal RAL6005-Dark Green,RAL9005-Black) |
|
Steel Clamps |
On request Bolts & Nuts |
Specification of post:
| Post Style | Post Size |
| Square/Rectangular Post | 40x60mm |
| 60x60mm | |
| 60x80mm | |
| Peach Post | 50x70mm |
| 70x100mm | |
| Round Post | 42x1.5mm |
| 48x1.5mm | |
| 60x1.5mm |
Powder coating process:
Fence preparation --- Special mineral turpentine cleaning ---- Chemical rust remover cleaning --- Enter the paint shop --- Apply the specified RAL colour ---- Bake and cure for 15-20 minutes ---- End test check ---- Final audit check
Benefits:
Packing terms:
1. fence panel: plastic film + metal pallet or wooden pallet;
2. fence post: plastic bag + metal pallet or wooden pallet;
3. fence accessories: plastic bag + carton box.
Or packing according to your requirements.
