Product Details:
Payment & Shipping Terms:
|
| Product Name: | V Mesh Security Fencing | Type: | Fencing,Trellis & Gates |
|---|---|---|---|
| Frame Finishing: | Powder Coated,PVC Coated,Galvanized | Feature: | Easily Assembled,Waterproof,Eco Friendly,Rot Proof,Rodent Proof |
| Metal Type: | Steel | Material: | Low Carbon Steel Wire |
| Color: | Green,Black,White,Red,Grey | Application: | Residential,industrial,roads,School,garden |
| High Light: | 55x200 mesh hole 3d panel fence,v curved bending 3d panel fence,55x200 Mesh powder coated 3d panel fence |
||
55 x 200 Mesh Hole Size V Curved Bending Powder Coated 3D Panel Fence
3D Panel Fence Introduction

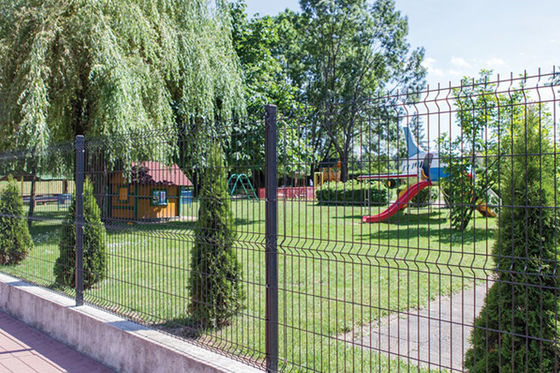

3D Panel Fence is also named as V mesh security fencing or curved mesh fence, it has simple structure and nice appearance. The V curves will make the welded mesh panel more stable and stronger. V mesh security fencing made by galvanized low carbon steel wire then powder coated or PVC coated. That will increase the using life for perimeter fencing using. 3D curved mesh fence is wildly using in home garden, parking lot, green lands of parks, outdoor perimeter fence.
3D Panel Fence Parameters
| Mesh Size | Wire Diameter | Panel Height | Panel Width | Bending No. | Common Color | Surface Treatment |
|---|---|---|---|---|---|---|
|
50*100mm 50*200mm 55*100mm 55*200mm |
4mm 5mm |
830mm |
2m 2.2m 2.4m 2.5m 2.8m 3m |
2 |
Green RAL 6005 Grey RAL 7016 Brown RAL 8019 Black RAL 9005 White RAL 9010 |
1.Hot dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded 4.Powder coated after galvanized wire welded |
| 1030mm | 2 | |||||
| 1230mm | 2 | |||||
| 1530mm | 3 | |||||
| 1830mm | 4 | |||||
| 2030mm | 4 | |||||
| 2230mm | 4 | |||||
| 2430mm | 4 |
Post Parameters
| Post Type | Post Size | Thickness | Panel Height | Post Height | Surface Treatment |
|---|---|---|---|---|---|
| Peach Post |
50*70mm 70*100mm |
1.0mm 1.1mm 1.2mm |
830mm | 1200mm | 1.Black tube hot-dipped galvanized
2.Galvanized tube PVC coated
3.Galvanized tube powder coated |
| 1030mm | 1400mm | ||||
| Square Post |
40*40mm 50*50mm 60*60mm |
1.0mm 1.2mm 1.5mm 1.8mm 2.0mm 2.5mm |
1230mm |
1600mm | |
| 1530mm | 2000mm | ||||
| Rectangular Post |
30*50mm 40*60mm 60*80mm |
1830mm | 2400mm | ||
| 2030mm | 2600mm | ||||
| Round Post |
38mm O.D. 40mm O.D. |
1.0mm 1.1mm 1.2mm |
2230mm | 2800mm | |
| 2430mm | 3000mm |
3D Panel Fence Features
1. High security projects

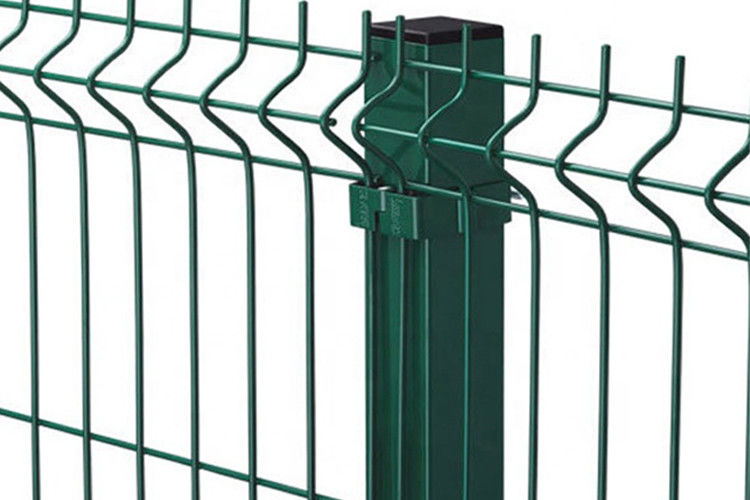

The fence panel adopts V-shaped curved rectangular mesh and horizontal steel wire to ensure the strength and safety.
2. Long service life
Anti-corrosive PVC and galvanized coated layer can increase the life of products.
3. Easy to install
We will provide instruction manual which is easy to understand and easy to assemble effectively isolates external pollution, greatly prolongs the service.
Applications
Packing terms
1. Fence panel: plastic film + wood / metal pallet.
2. Fence post: every post pack with a plastic bag (the cap is covered well on the post)+metal pallet.
3. Accessory: small plastic bag + carton box.
