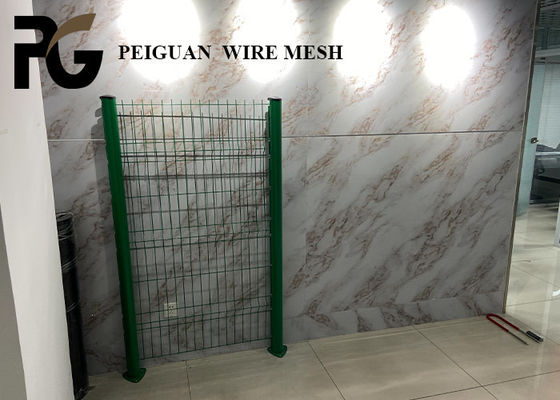

Outdoor Powder Coated Green V Mesh Fencing With Square Post

Outdoor Powder Coated Green V Mesh Fencing With Square Post
Outdoor Powder Coated Green V Mesh Fencing With Square Post Outdoor Powder Coated Green V Mesh Fencing With Square Post Outdoor Powder Coated Green V Mesh Fencing With Square Post Outdoor Powder Coated Green V Mesh Fencing With Square Post

Large Image :  Outdoor Powder Coated Green V Mesh Fencing With Square Post

Product Details:
Place of Origin: China
Certification: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Usually wrapped with shrink film and packed in pallet.
Delivery Time: 25DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Detailed Product Description
Product Name: V Mesh Security Fencing Material: Carbon Steel
Wire Diameter: 4mm; 5mm Mesh: 55*200mm
Height: 830mm-2430mm Surface Treatment: Hot-dipped Galvanized; Powder Coated
Zinc Coating: 50-60g/m2; 275-300g/m2 Thickness: 2.0mm, 1.5mm,1.45mm,1.4mm
Post Style: Square;Rectangular;Peach Fence Color: Dark Green, Grass Green, Red,etc
High Light:

5mm Green V Mesh Fencing

,

2m Green V Mesh Fencing

,

3D Bent V Mesh Security Fence

Outdoor Powder Coated 3D Bent Wire Mesh Fence With Square Post



Description:

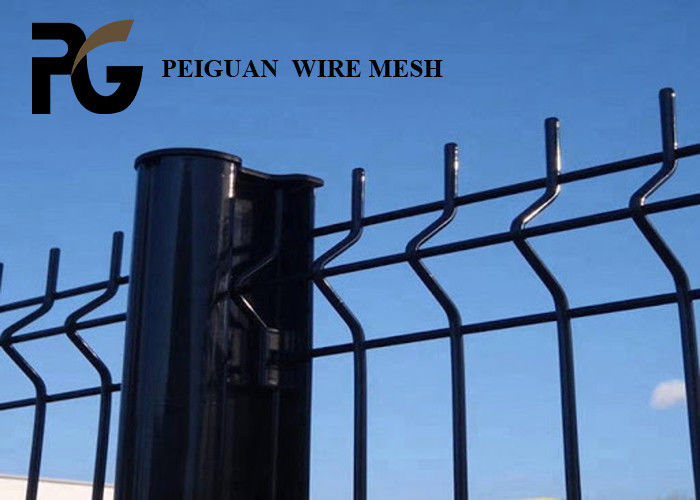

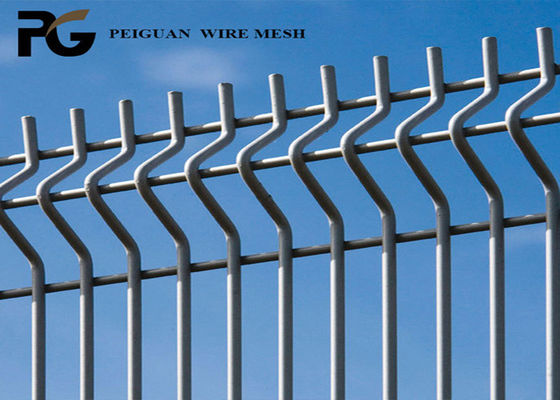

V-shaped mesh security fence, also called 3D panel fence or curved mesh fence, the distinctive feature is that the top, middle and bottom edges of the mesh panels have 'V' beams, and the V-shaped curve makes the welded mesh panels bend and more stable and solid. Due to its simple structure, 3D mesh fence can be directly connected with mesh without any fasteners, which can effectively play the role of anti-theft and anti-demolition. And with beautiful appearance, it is often used in industrial applications or residential applications. Not only enhancing the appearance, but also providing a complete support span between the posts, 3D fences are also often installed around homes, parks, gardens, utility buildings and playgrounds, as well as factories and various storage or warehouse areas.



Panel Specifications:



Mesh Size

Wire Diameter

 Height

 Length

Bending

No.

Common Color

Surface Treatment

50*200mm

50*100mm

55*200mm

55*100mm

4mm

5mm

 830mm

2m

2.2m

2.4m

2.5m

2.8m

3m



2

Green RAL6005



Grey RAL 7016



Brown RAL8019



Black RAL 9005



White RAL 9010

1.Hot dipped galvanized after black wire welded



2.PVC coated after galvanized wire welded



3.PE coated after galvanized wire welded



4.Powder coated after galvanized wire welded

1030mm

2

1230mm

2

1530mm

3

1830mm

4

2030mm

4

2230mm

4

2430mm

4



Square Post & Rectangual Post:



Post Type

Post Size

Thickness

Panel Height

Post Height

Surface Treatment

Square Post

40*40mm

50*50mm

60*60mm

1.0mm

1.1mm

1.2mm

1.5mm

1.8mm

2.0mm

2.5mm

830mm

1200mm

1.Black tube hot-dipped galvanized



2.Galvanized tube PVC coated



3.Galvanized tube powder coated

1030mm

1400mm

1230mm

1600mm

1530mm

2000mm

Rectangle Post

30*50mm

40*60mm

60*80mm

1830mm

2400mm

2030mm

2600mm

2230mm

2800mm

2430mm

3000mm

Peach Post:

Post Type

Post Size

Thickness

Panel Height

Post Height

Surface Treatment









Peach Post

50*70mm

1.0mm

1.1mm

1.2mm

830mm

1200mm



Galvanized tube

powder coated





1030mm

1400mm

1230mm

1600mm

1530mm

2000mm

70*100mm

1830mm

2400mm

2030mm

2600mm

2230mm

2800mm

2430mm

3000mm



Outdoor Powder Coated Green V Mesh Fencing With Square Post 0

Fence Panel Processing:

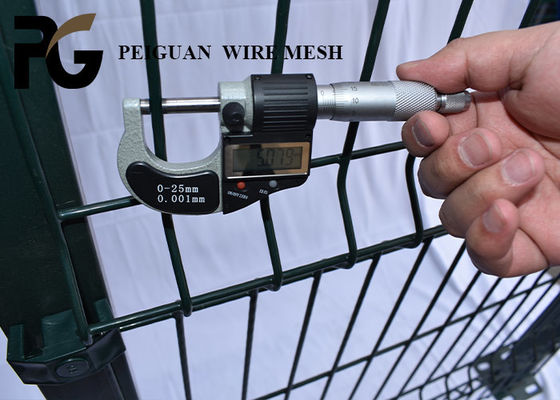

  • Step 1: wire diameter checking
  • Step 2: wire cutting and straightening
  • Step 3: panel welding
  • Step 4: Panel sanding
  • Step 5: panel powder coating
  • Step 6: After powder coating



Fence Post Processing:



  • Step 1: Post preparing and size checking
  • Step 2: Post cutting and welding
  • Step 3: Full post finished Welding
  • Step 4: post polishing with Smooth surface
  • Step 5:Post powder coating
  • Step 6:after powder coating with smooth surface



Advantages:


1. high overall strength and distinctive decorative effect.
2. Firmly welded, easy to cut and not easy to break.
3. High-grade dipping treatment, guaranteed not to rust for ten years.
4. Easy to install and dismantle, convenient to reuse and adjust as needed.
5. Environmentally friendly product, recyclable.



Packing terms:



Fence panel: plastic film + wood / metal pallet.

Fence post: every post pack with a plastic bag (the cap is covered well on the post)+metal pallet.

Accessory: small plastic bag + carton box.







Outdoor Powder Coated Green V Mesh Fencing With Square Post 1

Outdoor Powder Coated Green V Mesh Fencing With Square Post 2
