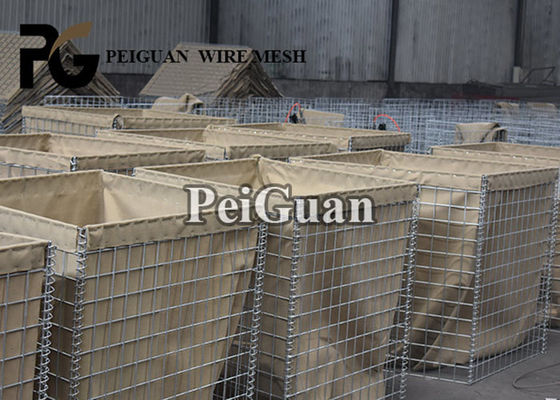

Green Hesco Bastion Barrier , MIL7 Military Hesco Barrier

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Green Hesco Bastion Barrier , MIL7 Military Hesco Barrier

Product Details:
Place of Origin: PeiGuan Metal Wire Mesh;Anping;China
Brand Name: PeiGuan
Certification: SGS
Model Number: HB-S02
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Usually wrapped with shrink film and packed in pallet.
Delivery Time: According to the order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Sets per Month
Detailed Product Description
Product Name: Hesco Bastion Barrier Wire Gauge: 4mm, 5mm
Dimension: MIL1-MIL12 Surface Treatment: Hot-dipped Galvanized, Galfan Coated
Processing Service: Welding Hole Shape: Square
Color: Beige, Military Green Application: Hesco Shooting Range, Military Defensive& Flood Control
High Light:

Green Hesco Bastion Barrier

,

4mm Wire Hesco Bastion Barrier

,

MIL7 Military Hesco Barrier

4mm Wire Gauge Square Hole Military Green MIL7 Hesco Bastion Barrier





Product description

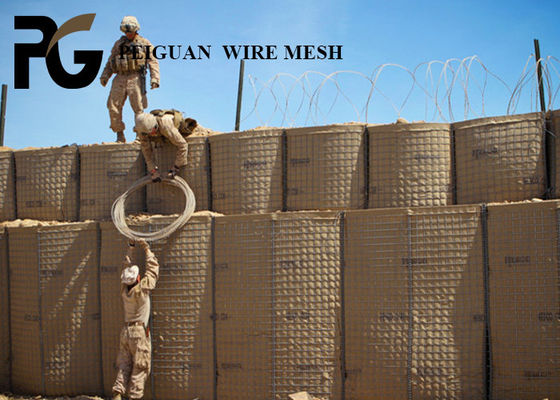

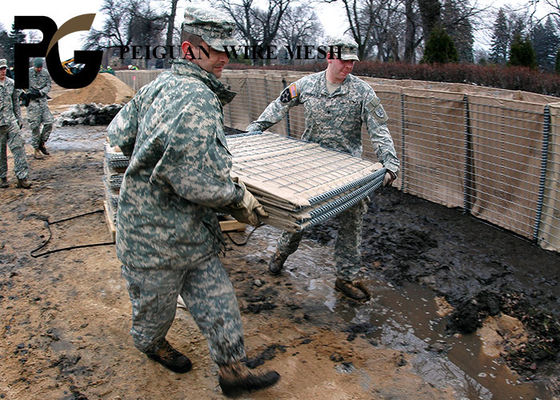

Hesco Bastion Barrier has been a key component in providing Force Protection since the 1991 Gulf War. It has been deployed with the U.S. Military, NATO, The United Nations and other military forces through out the world. Hesco Barriers Blast Wall is extensively used in the protection of personnel and key assets in military, peacekeeping, humanitarian and civilian operations. Features, Application & Use A pre-fabricated gabion of ga anised welded-mesh steel fitted with a UV-protected Polypropylene geo-textile liner. Filling material is an easily-obtained mix of sand and small stones. Can be connected together to any length, and can be stacked for additional height. Primary military use is as force protection against blast and projectiles.

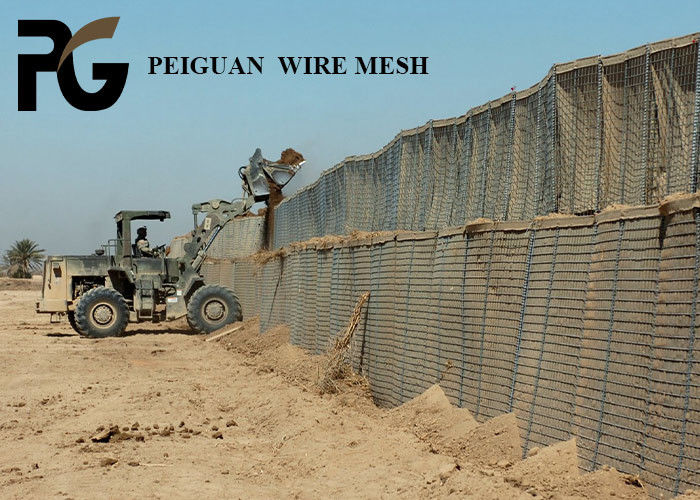

Similar to beehive,Hesco Bastion Barrier is comprised of external welded gabion and interior fabric liner. Its content includes soil, sand or little stone. The line would be yellow, grass green or other colors which blends well with the surroundings. Unlike common woven or welded gabions filled with stones only, Hesco barrier can be filled with soil, sand or gravel. This means raw material are very easy to get, especially suitable for the coastal area where is abundant in sand. Usually, front end loader is employed to fill the container.



Specifications



PRODUCT ITERM NO. HEIGHT WIDTH LENGTH CELLS NO.
PG MIL1 54''(1.37M) 42''(1.06M) 32'9''(10M) 5+4=9 cells
PG MIL2 24'' (0.61M) 24''(0.61M) 4'(1.22M) 2 cells
PG MIL3 39''(1.00M) 39''(1.00M) 32'.9''(10M) 5+5=10 cells
PG MIL4 39''(1.00M) 60''(1.52M) 32'.9''(10M) 5×2+5×2=20 cells
PG MIL5 24''(0.61M) 24''(0.61M) 10'(3.05M) 5 cells
PG MIL6 66''(1.68M) 24''(0.61M) 10'(3.05M) 5 cells
PG MIL7 87''(2.21M) 84''(2.13M) 91'(27.74M) 5+4+4=13 cells
PG MIL8 54''(1.37M) 48''(1.22M) 32'.9''(10M) 5+4=9 cells
PG MIL9 39''(1.00M) 30''(0.76M) 30'(9.14M) 6+6=12 cells
PGMIL10 87''(2.21M) 60''(1.52M) 100'(30.50M) 5+5+5+5=20 cells
PG MIL11 48''(1.22M) 12''(0.30M) 4'(1.22M) 2 cells
PG MIL12 84"(2.13M) 42"(1.06M) 108"(33M) 5+5+5+5+5+5=30 cells
PG MIL19 108''(2.74M) 42"(1.06M) 10'5'(3.18M) 6 cells



Features



1. Easy to handle and install
2. High tensile and anti-impact capability
3. Long life, regular use
4. Can be filled with sand, earth, cement, stone.



Usage



1. Perimeter security and defence walls
2. Equipment revetments
3. Explosive and contraband search areas
4. Ammunition compounds
5. Personnel and material bunkers
6. Observation points
7. Defensive firing positions
8. Highway checkpoints
9. Border crossing checkpoints
10. Protection existing structures
11. High way traffic management
12. Flood control
13. Water courses
14. Emergency flood deployment
15. Erosion control
16. Retaining walls



Our Service



1. Provide most of free samples

2. Spot inspection and finished product inspection

3. 24 hours to answer your questions and doubts



Green Hesco Bastion Barrier , MIL7 Military Hesco Barrier 0Green Hesco Bastion Barrier , MIL7 Military Hesco Barrier 1Green Hesco Bastion Barrier , MIL7 Military Hesco Barrier 2
